Vehicle Info NeededCOMP CAMSPART NUMBER: 249-102300

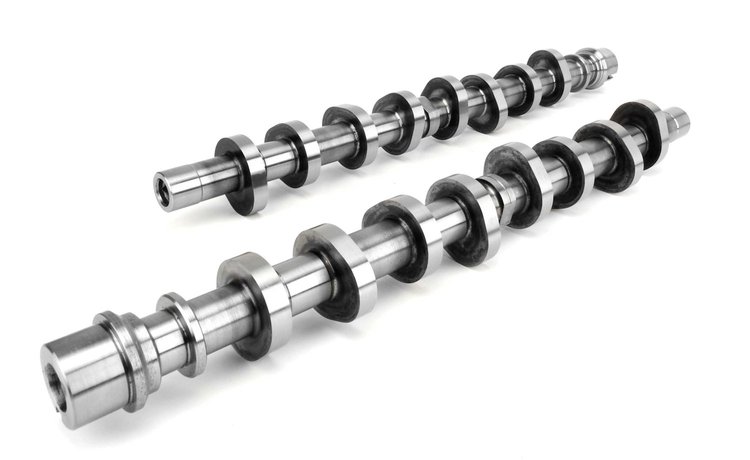

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$88095
Ships on 09/09/2026
Lowest Price GuaranteeFord 4.6L/5.4L SOHC MODULAR 2V 1991-Present
- Xtreme Energy XE274H Hydraulic Roller Swinging Follower Camshaft
Lift: .500"/.500"
Duration: 274°/278°
Lobe Separation Angle: 114°
RPM Range: 2000-6000
SOHC-Hot street cam. 3.55-3.73 gears with 2000+ stall converter. Computer upgrade recommended. Rough idle.
Ford; Modular; 2-Valve; Mustang; Mustang GT; SN95; 2V; Mercury
Hot street, 3.55-3.73 gears, 2000+ stall. Requires custom tuning. Rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.1
Package Width6.0
Package Length25.5
Weight16.95 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)240
Cam StyleHydraulic roller follower
Grind NumberXE274H
Exh. Duration Advertised (Deg)278
Engine Make/SizeFord 4.6L 2V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
Int. Duration @ .050 In. (Deg)236
Basic Operating Rpm Range2,000-6,000
Intake Valve Lift0.5 in (12.7 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)114
Rpm Range2000-6000
Advertised Duration274 int./278 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
QuantitySold as a pair
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration274
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift240
Advertised Exhaust Duration278
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift236 int./240 exh.
Valve Springs RequiredYes
Vendor Part Number102300
Package Qty1
Package TypeEA
