Vehicle Info NeededCOMP CAMSPART NUMBER: 249-102500

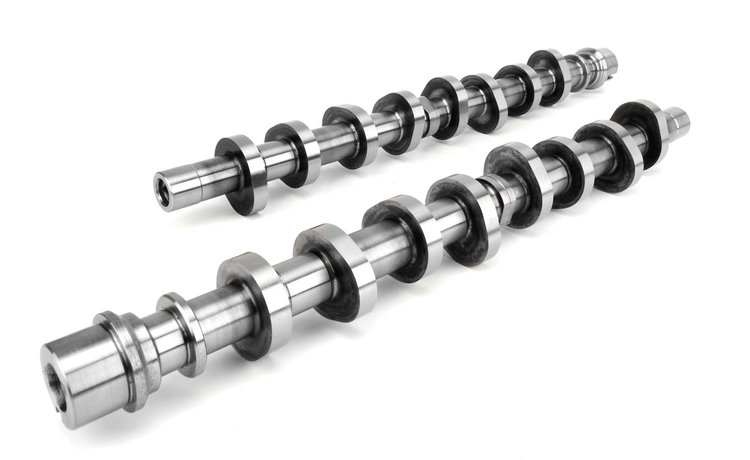

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$88095
4 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord 4.6L/5.4L SOHC MODULAR 2V 1991-Present
- Xtreme Energy XE262H Hydraulic Roller Swinging Follower Camshaft
Lift: .550"/.550"
Duration: 262°/266°
Lobe Separation Angle: 113°
RPM Range: 1400-5400
SOHC-Excellent torque. Better low and mid range torque with more power. Will work with stock computer. Best with custom tuning. For 1999-up Performance Improvement Heads, Note: Can also be used in Pre 99 (P.I.) Heads with retainer to guide clearance modifications and Comp Cams 249-26113 Valve Springs.
Ford; Modular; 2-Valve; Mustang; Mustang GT; SN95; 2V; Mercury
Excellent torque. Better low and mid-range torque with more power. Will work with stock computer, best with custom tuning.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height4.3
Package Width6.7
Package Length24.8
Weight16.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller follower
Grind NumberXE262AH
Exh. Duration Advertised (Deg)266
Engine Make/SizeFord 4.6L 2V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)226
Basic Operating Rpm Range1,400-5,400
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)113
Rpm Range1400-5400
Advertised Duration262 int./266 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.550 exh.
QuantitySold as a pair
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift226
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration266
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift226 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number102500
Package Qty1
Package TypeEA
