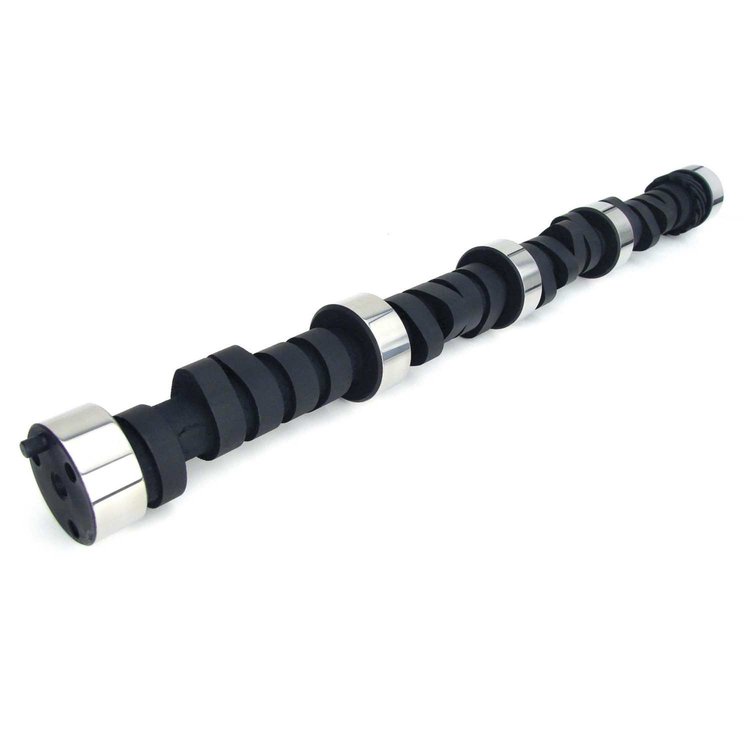

Magnum 294S Mechanical Flat Tappet Camshaft
Lift: .595''/.595"
Duration: 294°/294°
Lobe Separation Angle: 110°
RPM Range: 2500-6500


*Note: In order to use these camshafts in 1965-66 396/427ci blocks, it is necessary to machine a 3/16' wide x 7/64' deep groove in the rear main journal of the cam to allow oil flow to the top of the engine.

Good for Street/Strip cars. 3000+ stall Converter or 4-speed. 10:1 compression, headers and low gears. Very rough idle.

Operating Range:	2500-6500 RPM
Duration Advertised:	294° Intake / 294° Exhaust
Duration @ .050' Lift:	248° Intake / 248° Exhaust
Valve Lift w/1.7 Rockers:	.595' Intake / .595' Exhaust
Valve Setting:	.022' Intake / .022' Exhaust
Lobe Separation Angle:	110°

Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572


Good for street/strip cars. 3000+ stall or 4 speed. 10:1+ compression, headers and low gears. Very rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
