COMP CAMSPART NUMBER: 249-11-735-9

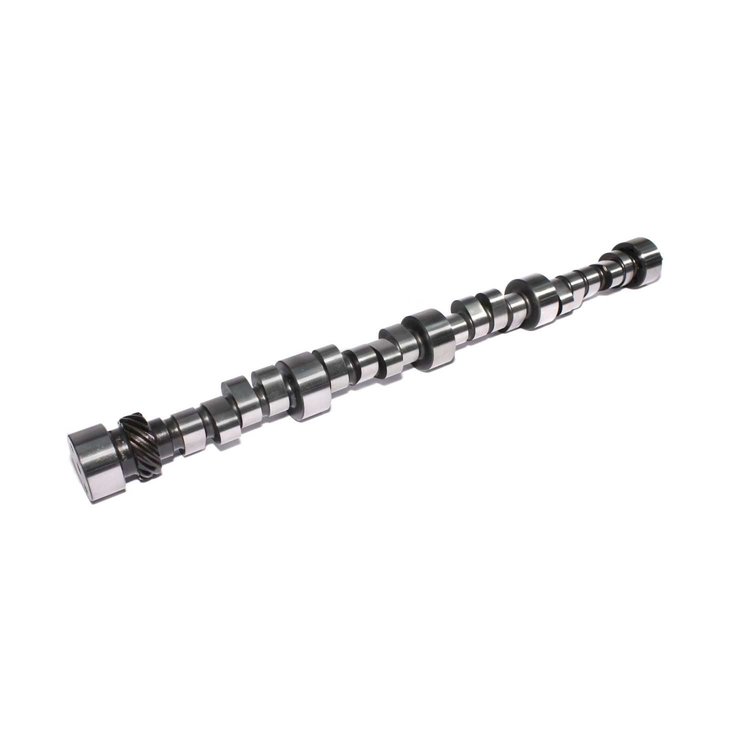

Drag Race Xtreme RX Mechanical Roller Camshaft Lift .800"/.800" Duration 310/330 RPM Range 4300-8000
$51695
Chevy 396-454ci Big Block 1965-96 Xtreme RX
- Drag Race Xtreme RX Mechanical Roller Camshaft
Lift .800"/.800"
Duration 310/330
RPM Range 4300-8000
DRAG RACE Xtreme RX Rollers - These camshafts use COMP's new RX Drag roller profiles to give more lift, more area under the curve and shorter seat timing than any other high RPM drag racing series we have offered. Great for all out drag racing applications such as Competition Eliminator, Fast Bracket, Quick 16, Nitrous and Heads Up applications.Mechanical Roller-Lower RPM bracket with good heads
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Lower RPM bracket with good heads.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.2
Weight10.15 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)292
Cam StyleMechanical roller tappet
Grind NumberCB 310RXD-14
Exh. Duration Advertised (Deg)330
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.8
Int. Duration @ .050 In. (Deg)277
Basic Operating Rpm Range4,300-8,000
Intake Valve Lash0.026 in (0.66 mm)
Intake Valve Lift0.8 in (20.32 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)310
Lobe Separation (Deg)114
Rpm Range4300-8000
Advertised Duration310 int./330 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.8
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.800 int./0.800 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.028 in (0.711 mm)
Exhaust Valve Lift0.8 in (20.32 mm)
Advertised Intake Duration310
Intake Duration At 050 Inch Lift277
Exhaust Duration At 050 Inch Lift292
Advertised Exhaust Duration330
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift277 int./292 exh.
Valve Springs RequiredYes
Vendor Part Number11-735-9
Package Qty1
Package TypeEA
