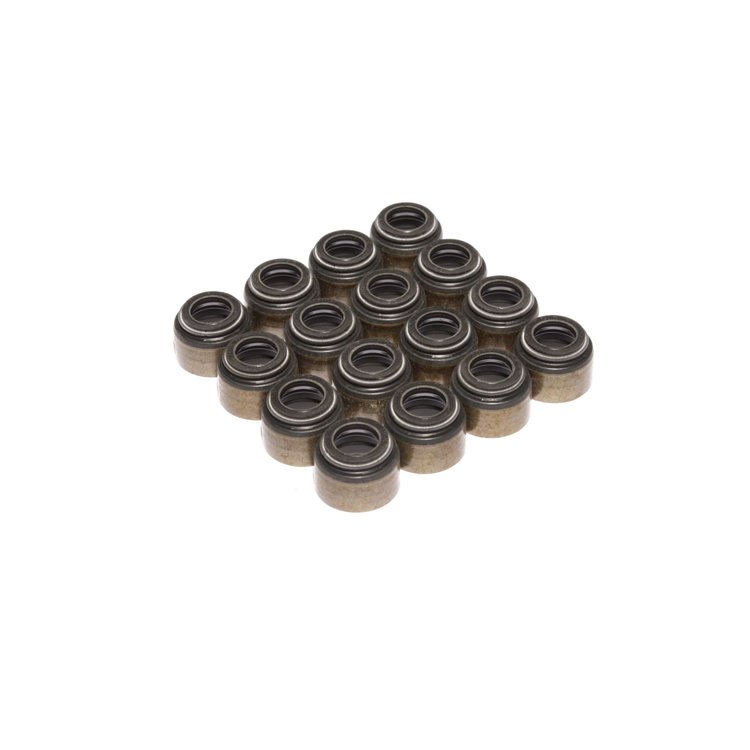

Viton Valve Seals Guide Size: .494"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-506-16

Viton Valve Seals Guide Size: .494"

$5095
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Viton Valve Seals
    Viton Valve Seals
  • Guide Size: .494''
  • Valve Size: 11/32''
  • Small Outside Diameter for Triple Spring
  • 16/pkg

    Note: Specially designed for 249-946-16, 249-947-16, and 249-948-16 triple valve springs

    PTFE; Seal; Valve Guide; Valve Guide Seal; Valve Stem Seal; Valve Seals; 5/16" Valve Seals; 11/32" Valve Seals; .530" Valve Seal; Umbrella; O-Ring Seals; Viton Seals; 8 mm Seals


    Providing the best sealing properties and spring clearance, viton valve seals are an excellent choice in performance applications. The 506 seals have a .610" OD and fit applications with 11/32" valves and .494" OD guides.

Comp Cams offers a complete line of valve stem seals, from the stock GM O-ring to the positive stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. O-ring seals use the standard retainer and oil splash shield. Umbrella seals are normally used when a larger-than-stock diameter spring is used; in the case of a double spring, positive stop PTFE seals are used. There is also a smaller diameter Viton seal available for triple spring applications. O-rings and umbrella seals require no machining, but PTFE seals require the heads to be disassembled so the top guides can be machined with a special .530" diameter cutter. Whenever you're planning an overhaul or cam change, don't forget the valve seals!

Show More

Features:

  • Excellent Sealing Properties
  • O-Ring & Umbrella Seals Require No Machining
Part TypeValve Stem Seal
Product LineComp Cams Valve Stem Seals
BrandCOMP CAMS
Package Height1.5
Package Width5.75
Package Length9.37
Weight0.2 PG
Part CategoryPerformance Parts
Valve Guide Diameter0.494 in (12.5 mm)
Valve Stem Seal TypePositive stop
Machine Work RequiredNo
Valve Stem Seal MaterialViton«
QuantitySold as a set of 16
Valve Stem Diameter0.344 in (8.7 mm)
Part FitmentSemi Universal
Diameter0.344 in (8.738 mm)
Vendor Part Number506-16
Package Qty1
Package TypeEA
