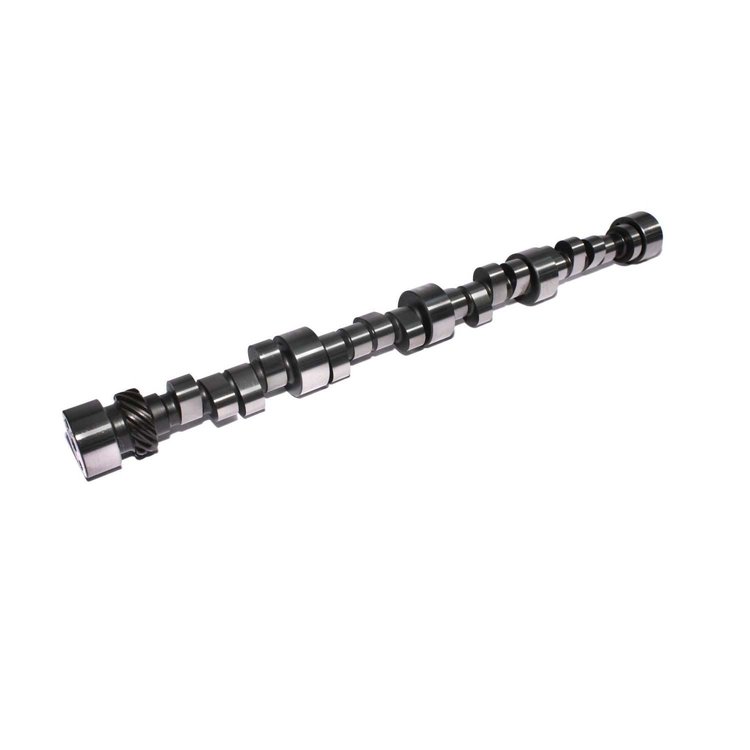

Drag Race Mechanical Roller Camshaft 4/7 Swap Firing Order Lift .824"/.800" Duration 318/338 RPM Range 5000-9000
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-11-752-14

Drag Race Mechanical Roller Camshaft 4/7 Swap Firing Order Lift .824"/.800" Duration 318/338 RPM Range 5000-9000

$60395
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Chevy 396-454ci Big Block 1965-96
  • 4&7 Swap Firing Order
      • Drag Race Mechanical Roller Camshaft
      4/7 Swap Firing Order
      Lift .824"/.800"
      Duration 318/338
      RPM Range 5000-9000

      Mechanical Roller-Large Comp eliminator with high ratio & fast bracket 1.8 & 1.7

      Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572


      Large cubic inch Quick 16, Eliminator with high ratio rockers and Fast Bracket, 1.8 and 1.7.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.8
    Package Width3.0
    Package Length24.2
    Weight10.15 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)300
    Cam StyleMechanical roller tappet
    Grind NumberCB 47S 318RXD-14
    Exh. Duration Advertised (Deg)338
    Engine Make/SizeChevy Big Block (396-454)
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.824
    Int. Duration @ .050 In. (Deg)285
    Basic Operating Rpm Range5,000-9,000
    Intake Valve Lash0.024 in (0.61 mm)
    Intake Valve Lift0.873 in (22.174 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)318
    Lobe Separation (Deg)114
    Rpm Range5000-9000
    Advertised Duration313 int./338 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.8
    UsageStrip
    Valve Lift With Factory Rocker Arm Ratio0.824 int./0.800 exh.
    Camshaft Gear Attachment3-bolt
    QuantitySold individually
    Exhaust Valve Lash0.026 in (0.66 mm)
    Exhaust Valve Lift0.8 in (20.32 mm)
    Advertised Intake Duration318
    Intake Duration At 050 Inch Lift285
    Exhaust Duration At 050 Inch Lift300
    Advertised Exhaust Duration338
    Lifter TypeMechanical Roller
    Duration At 050 Inch Lift285 int./300 exh.
    Valve Springs RequiredYes
    Vendor Part Number11-752-14
    Package Qty1
    Package TypeEA
