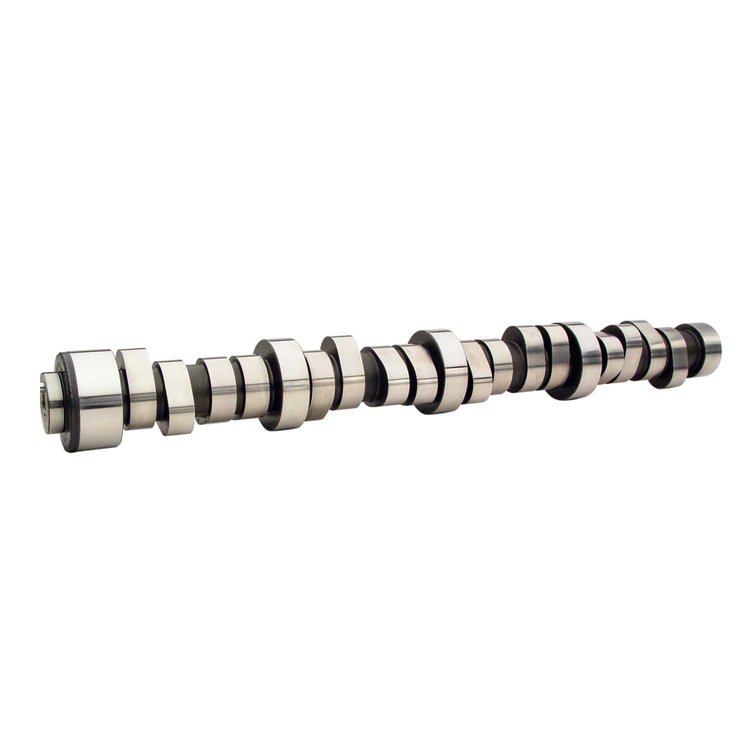

XFI Hydraulic Roller Camshaft Dodge 5.7/6.1L Hemi Lift: .522"/.525" With 1.6 Rockers
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-112-500-11

XFI Hydraulic Roller Camshaft Dodge 5.7/6.1L Hemi Lift: .522"/.525" With 1.6 Rockers

$60895
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Dodge 5.7L & 6.1L Hemi 2003-Present
    XFI Hydraulic Roller Camshaft
    Dodge 5.7/6.1L Hemi
  • Lift: .522"/.525" With 1.6 Rockers
  • Duration: 260°/264°
  • Lobe Separation Angle: 113°
  • RPM Range: 1000-5500

    The XFI 260 netted 20 additional ft pounds of torque in lower rpm ranges with a peak of 31 additional hp. The XE 268 camshaft added 14 ft lbs of torque at low rpm and 47 additional peak horsepower. The amazing Comp Cams XFI 273 camshaft yielded it's most significant horsepower increases over 4500 rpm generating 61 more horsepower than the stock Hemi 5.7-liter engine.

    Challenger; Charger; R/T; SRT; Magnum; HEMI; 5.7; 6.1; Hell Cat; 6.2; 300; Chrysler; MOPAR; 6.4; Dodge; Plymouth; SRT 8; 392; Scat Pack


    Slight noticeable idle, slight tuning modifications, excellent torque throughout range. Needs programmer.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height2.6
Package Width2.8
Package Length24.3
Weight13.19 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)264
Engine Make/SizeMopar 426 Hemi
Intake Valve Lift With Factory Rocker Arm Ratio (I0.522
Int. Duration @ .050 In. (Deg)208
Basic Operating Rpm Range1,000-5,500
Intake Valve Lift0.522 in (13.259 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)113
Rpm Range1000-5500
Advertised Duration260 int./264 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.522 int./0.525 exh.
QuantitySold individually
Exhaust Valve Lift0.525 in (13.335 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift208
Exhaust Duration At 050 Inch Lift212
Advertised Exhaust Duration264
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift208 int./212 exh.
Valve Springs RequiredYes
Vendor Part Number112-500-11
Package Qty1
Package TypeEA
