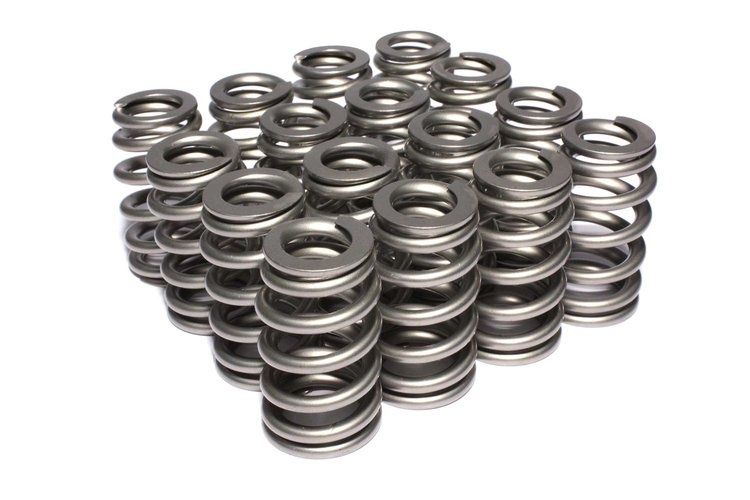

Vehicle Info NeededBeehive Valve Spring Chevy LS1/LS2/LS6
Ships Tomorrow
Lowest Price Guarantee- Beehive Valve Spring
- Chevy LS1/LS2/LS6
- O.D. Base: 1.310
- 16/pkg
Designed for hydraulic cams - .625' maximum lift
- Originally designed for LS1, LS2 and LS6 engines
- Will work in 5.7 Hemi engine with part 249-761 or 249-762 retainer as well as many other engine combinations.
Specs - OD: Top 1.075" Bottom 1.310"
- ID: Top .650" Bottom .885"
- Seat Pressure: 125 lbs @ 1.800'
- Open Pressure: 367 lbs @ 1.150'
- Coil Bind: 1.100"
- Spring Rate: 372 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Ideal for performance street hydraulic flat and roller cams, these 16 beehive springs offer more stability for high RPM potential, longer life and more power. Beehive design reduces spring weight while eliminating damaging harmonics.
Advanced Beehive Valve Spring Technology
Comp Cams Beehive Valve Springs are revolutionizing performance street/strip applications! These valve springs deliver increased valve train stability while offering a reduction in weight. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and the retainer. Using Comp Spintron testing equipment, the Beehive spring was engineered to maximize "harmonic resistance" through reduced mass and unique coil spacing.
Show More
With highly reduced internal spring harmonics, engines equipped with these state-of-the-art Beehive valve springs rev higher and live longer as compared with other "performance" springs. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.
