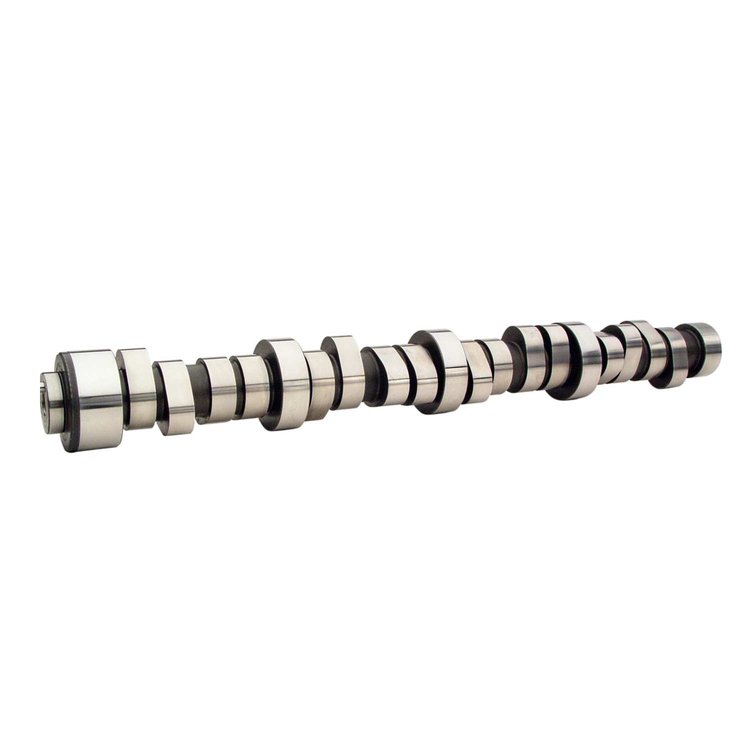

XFI Hydraulic Roller Camshaft Dodge 5.7/6.1L Hemi (2003+) Lift: .547"/.550" With 1.6 Rockers
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-112-502-11

XFI Hydraulic Roller Camshaft Dodge 5.7/6.1L Hemi (2003+) Lift: .547"/.550" With 1.6 Rockers

$60895
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Dodge 5.7L & 6.1L Hemi 2003-Present
    XFI Hydraulic Roller Camshaft
    Dodge 5.7/6.1L Hemi (2003+)
  • Lift: .547"/.550" With 1.6 Rockers
  • Duration: 273°/277°
  • Lobe Separation Angle: 114°
  • RPM Range: 2000-6200

    The XFI 260 netted 20 additional ft pounds of torque in lower rpm ranges with a peak of 31 additional hp. The XE 268 camshaft added 14 ft lbs of torque at low rpm and 47 additional peak horsepower. The amazing Comp Cams XFI 273 camshaft yielded it's most significant horsepower increases over 4500 rpm generating 61 more horsepower than the stock Hemi 5.7-liter engine.

    Challenger; Charger; R/T; SRT; Magnum; HEMI; 5.7; 6.1; Hell Cat; 6.2; 300; Chrysler; MOPAR; 6.4; Dodge; Plymouth; SRT 8; 392; Scat Pack


    Needs extended rev limit and better exhaust, strongest power over 2500 RPM. Requires custom tuning.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.8
Package Length24.2
Weight13.04 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)228
Cam StyleHydraulic roller tappet
Grind Number273H-11
Exh. Duration Advertised (Deg)277
Engine Make/SizeMopar 426 Hemi
Intake Valve Lift With Factory Rocker Arm Ratio (I0.547
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range2,000-6,200
Intake Valve Lift0.547 in (13.894 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)273
Lobe Separation (Deg)114
Rpm Range2000-6200
Advertised Duration273 int./277 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.547 int./0.550 exh.
QuantitySold individually
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration273
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift228
Advertised Exhaust Duration277
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift224 int./228 exh.
Valve Springs RequiredYes
Vendor Part Number112-502-11
Package Qty1
Package TypeEA
