Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy Small Block 262-400ci 1955-98Retro-Fit

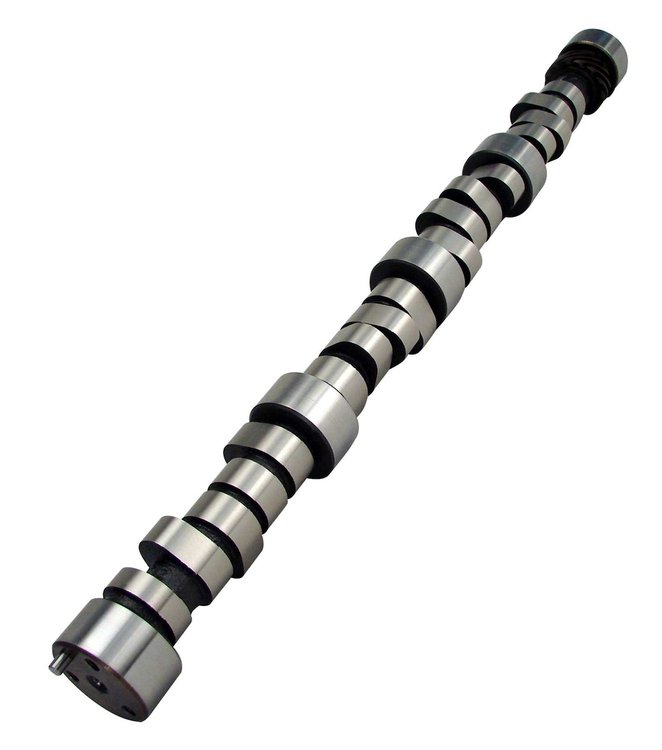

- Xtreme 4x4 Retro-Fit Hydraulic Roller Camshaft
Chevy Small Block 262-400ci 1955-98
Lift: .458"/.458"
Duration: 258°/262°
Lobe Separation Angle: 111°
RPM Range: 1000-5000
Strong torque, good mileage, for stock to mildly modified engines.
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Strong torque, good mileage, for stock to mildly modified engines.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.7
Package Width3.0
Package Length24.3
Weight9.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)210
Cam StyleHydraulic roller tappet
Grind NumberCS X4 258HR-11
Exh. Duration Advertised (Deg)262
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.458
Int. Duration @ .050 In. (Deg)206
Basic Operating Rpm Range1,000-5,000
Intake Valve Lift0.458 in (11.633 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)258
Lobe Separation (Deg)111
Rpm Range1000-5000
Advertised Duration258 int./262 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.458
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.458 int./0.458 exh.
QuantitySold individually
Exhaust Valve Lift0.458 in (11.633 mm)
Advertised Intake Duration258
Intake Duration At 050 Inch Lift206
Exhaust Duration At 050 Inch Lift210
Advertised Exhaust Duration262
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift206 int./210 exh.
Valve Springs RequiredYes
Vendor Part Number12-409-8
Package Qty1
Package TypeEA
