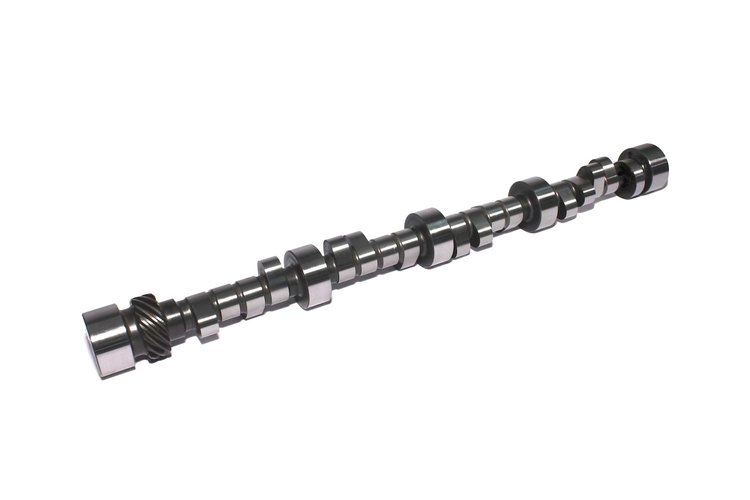

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-12-814-9
Drag Race Mech. Roller Camshaft Lift .824"/.739" Duration 314/335 RPM Range 6000-10000
$55895
Ships on 09/15/2026
Lowest Price GuaranteeChevy 262-400ci Small Block 1955-98
- Drag Race Mech. Roller Camshaft
Lift .824"/.739"
Duration 314/335
RPM Range 6000-10000
Mechanical Roller-Small cubic inch high RPM with 1.7 & 1.6
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Small cubic inch high RPM with 1.7 and 1.6.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight8.9 PG
Part CategoryPerformance Parts
UsageStrip
Intake Valve Lift0.824 in (20.93 mm)
Int. Duration Advertised (Deg)314
Exh. Duration @ .050 In. (Deg)294
Rpm Range6000-10000
Lifter TypeMechanical Roller
Exh. Duration Advertised (Deg)335
Part FitmentSemi Universal
Engine Make/SizeChevy Small Block (262-400)
Int. Duration @ .050 In. (Deg)278
Exhaust Valve Lift0.739 in (18.771 mm)
Vendor Part Number12-814-9
Package Qty1
Package TypeEA
