Vehicle Info NeededCOMP CAMSPART NUMBER: 249-12-820-9

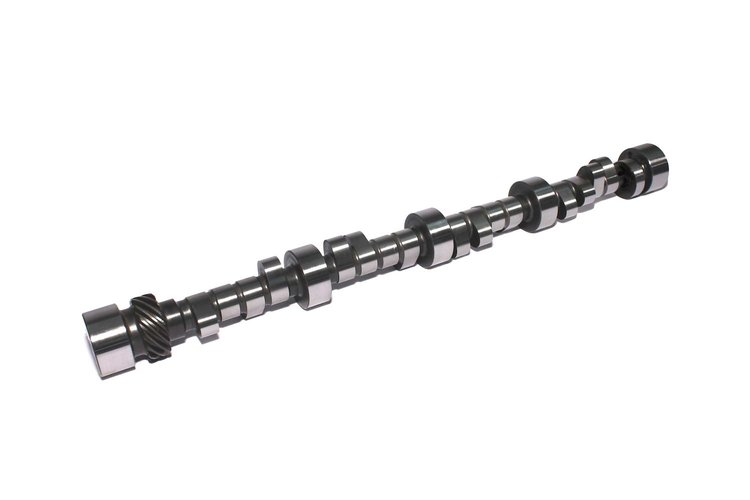

Drag Race Mechanical Roller Camshaft Lift .873"/.800" Duration 318/338 RPM Range 5200-9200
$50595
Ships on 09/16/2026
Lowest Price GuaranteeChevy 262-400ci Small Block 1955-98
- Drag Race Mechanical Roller Camshaft
Lift .873"/.800"
Duration 318/338
RPM Range 5200-9200
Mechanical Roller-Large cubic inch Quick 16 of fast bracket with 1.8 & 1.7
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Large cubic inch Quick 16 or Fast Bracket with 1.8 and 1.7.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.3
Weight8.34 PG
Part CategoryPerformance Parts
UsageStrip
Intake Valve Lift0.873 in (22.174 mm)
Int. Duration Advertised (Deg)318
Exh. Duration @ .050 In. (Deg)300
Rpm Range5200-9200
Lifter TypeMechanical Roller
Exh. Duration Advertised (Deg)338
Part FitmentSemi Universal
Engine Make/SizeChevy Small Block (262-400)
Int. Duration @ .050 In. (Deg)285
Exhaust Valve Lift0.8 in (20.32 mm)
Vendor Part Number12-820-9
Package Qty1
Package TypeEA
