Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-630-5

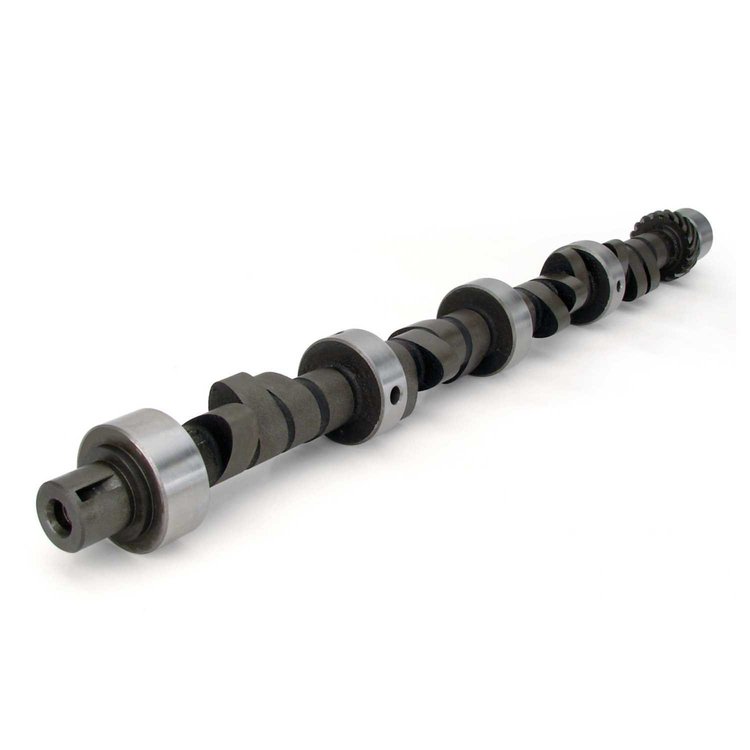

Comp Cams Oval Track Camshafts
$39595
Ships on 09/08/2026
Lowest Price GuaranteeChrysler 273-360ci 1964-2000Mechanical Flat Tappet
- Oval Track Mechanical Flat Tappet Camshaft
Chrysler 273-360ci 1964-2000
Lift: .560"/.570"
Duration: 273°/277°
Lobe Separation Angle: 108°
RPM Range: 3700-6700
Very aggressive late model stockcam for shorter rod or larger track.
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Very aggressive late model stock cam for shorter rod or larger track.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)251
Cam StyleMechanical flat tappet
Grind NumberCRS 273MM-8
Exh. Duration Advertised (Deg)277
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)247
Basic Operating Rpm Range3,700-6,700
Intake Valve Lash0.018 in (0.457 mm)
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)273
Lobe Separation (Deg)108
Rpm Range3700-6700
Advertised Duration273 int./277 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.57
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.570 exh.
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.57 in (14.478 mm)
Advertised Intake Duration273
Intake Duration At 050 Inch Lift247
Exhaust Duration At 050 Inch Lift251
Advertised Exhaust Duration277
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift247 int./251 exh.
Valve Springs RequiredYes
Vendor Part Number20-630-5
Package Qty1
Package TypeEA
