Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-701-9

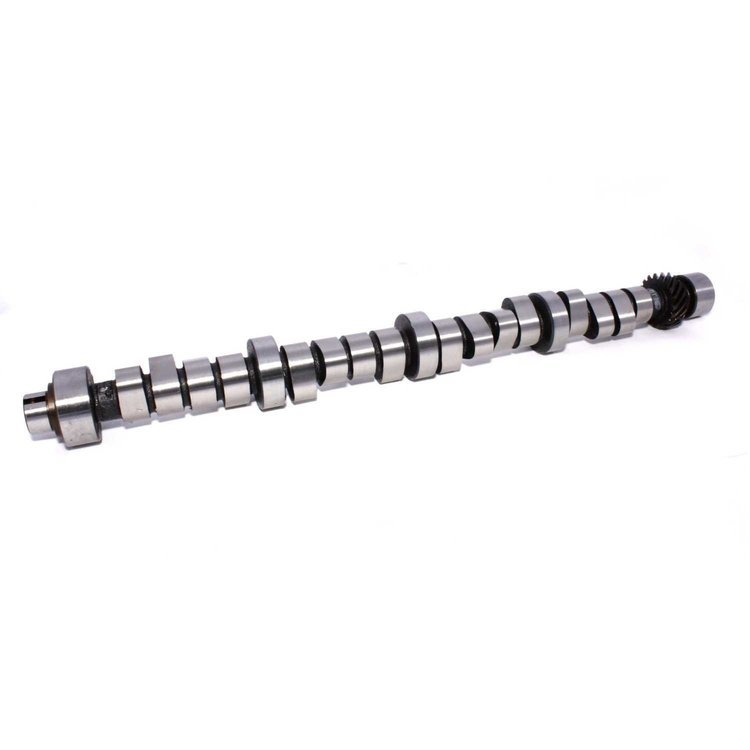

Magnum Mechanical Roller Camshaft Chrysler 273-360ci 1964-2000 Lift: .550"/.550"
$55895
1 left in stock
Ships Today
Lowest Price GuaranteeChrysler 273-360ci 1964-2000
- Magnum Mechanical Roller Camshaft
- Lift: .550"/.550"
- Duration: 288°/288°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6500
Mechanical Roller-Excellent for Street / Strip effort for 9.5:1 to 10:1 compression 340 & 360. 3500 stall,aftermarket intake with 750 CFM carb.273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Excellent for street/strip effort for 9.5:1 to 10:1 compression in 340 and 360. 3500 Stall, aftermarket intake with 750+ CFM carb.
Chrysler 273-360ci 1964-2000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.1
Weight9.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)243
Cam StyleMechanical roller tappet
Grind NumberCRS 288R-10
Exh. Duration Advertised (Deg)288
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)243
Basic Operating Rpm Range3,000-6,500
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)110
Rpm Range3000-6500
Advertised Duration288 int./288 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.550 exh.
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration288
Intake Duration At 050 Inch Lift243
Exhaust Duration At 050 Inch Lift243
Advertised Exhaust Duration288
Lifter TypeMechanical Roller
Duration At 050 Inch Lift243 int./243 exh.
Valve Springs RequiredYes
Vendor Part Number20-701-9
Package Qty1
Package TypeEA
