Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-702-9

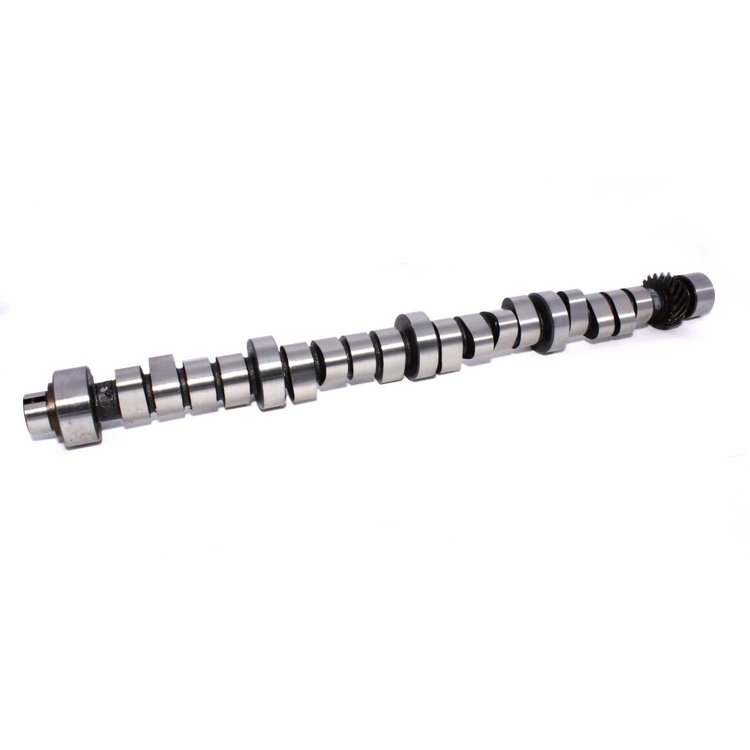

Magnum Mechanical Roller Camshaft Chrysler 273-360ci 1964-2000 Lift: .575"/.575"
$55895
Ships on Sep 04, 2026
Lowest Price GuaranteeChrysler 273-360ci 1964-2000
- Magnum Mechanical Roller Camshaft
- Lift: .575"/.575"
- Duration: 308°/308°
- Lobe Separation Angle: 110°
- RPM Range: 4000-7200
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Max effort street roller. 10:1+ compression with 750 CFM carb on aftermarket intake. 4.30-4.88 gear suggested with 4000-4500+ converter. Headers.
Chrysler 273-360ci 1964-2000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.2
Package Length24.5
Weight9.25 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)262
Cam StyleMechanical roller tappet
Grind Number308R
Exh. Duration Advertised (Deg)308
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.575
Int. Duration @ .050 In. (Deg)262
Basic Operating Rpm Range4,000-7,200
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.575 in (14.605 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)308
Lobe Separation (Deg)110
Rpm Range4000-7200
Advertised Duration308 int./308 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.575
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.575 int./0.575 exh.
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.575 in (14.605 mm)
Advertised Intake Duration308
Intake Duration At 050 Inch Lift262
Exhaust Duration At 050 Inch Lift262
Advertised Exhaust Duration308
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift262 int./262 exh.
Valve Springs RequiredYes
Vendor Part Number20-702-9
Package Qty1
Package TypeEA
