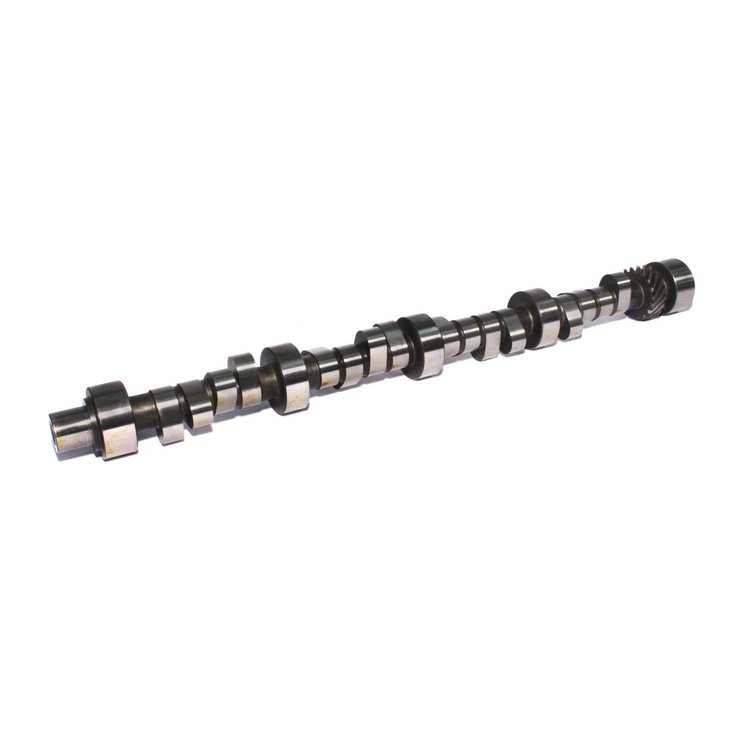

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-719-9
Drag Race Mechanical Roller Camshaft Lift .649"/.651" Duration 296/303 RPM Range 4200-7400
$55895
Ships on 10/22/2026
Lowest Price GuaranteeChrysler 273-360 C.I. 8 CYL. 1964-2000
- Drag Race Mechanical Roller Camshaft
Lift .649"/.651"
Duration 296/303
RPM Range 4200-7400
Mechanical Roller-Good all around /Bracket cam 4200 stall in 360 or 4500+ stall in 340, 11.5:1 comp.
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Good all around bracket cam. 4200+ stall in 360 or 4500+ stall in 340, 11.5:1 compression.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.3
Weight9.3 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)270
Cam StyleMechanical roller tappet
Grind NumberCRS RX296S-R6
Exh. Duration Advertised (Deg)303
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.649
Int. Duration @ .050 In. (Deg)263
Basic Operating Rpm Range4,200-7,400
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.649 in (16.485 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)296
Lobe Separation (Deg)106
Rpm Range4200-7400
Advertised Duration296 int./303 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.651
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.649 int./0.651 exh.
QuantitySold individually
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.651 in (16.535 mm)
Advertised Intake Duration296
Intake Duration At 050 Inch Lift263
Exhaust Duration At 050 Inch Lift270
Advertised Exhaust Duration303
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift263 int./270 exh.
Valve Springs RequiredYes
Vendor Part Number20-719-9
Package Qty1
Package TypeEA
