Vehicle Info NeededCOMP CAMSPART NUMBER: 249-20-746-9

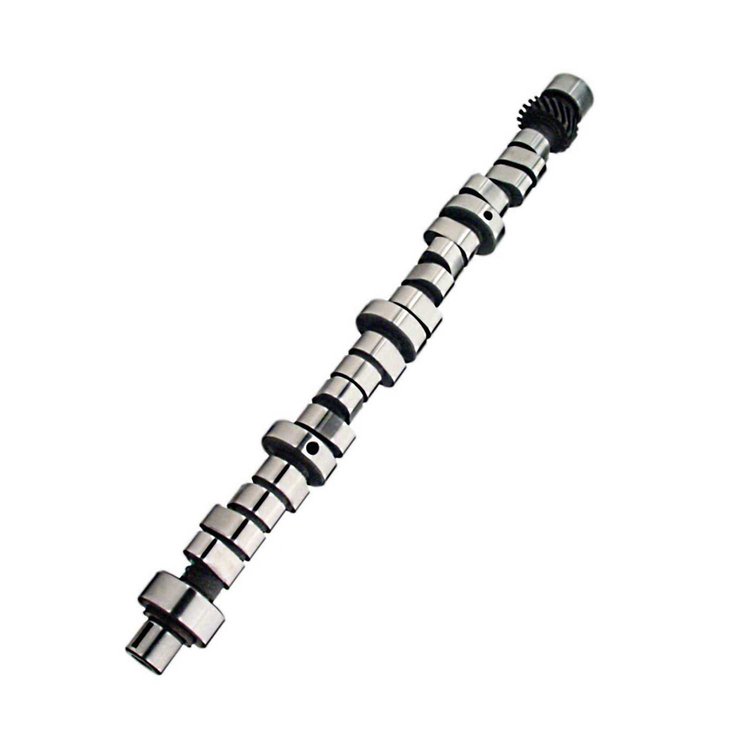

Comp Cams 'Xtreme Energy' Hydraulic Roller Camshafts
$55895
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeChrysler 273-360
1992-02 Magnum Engines
1992-02 Magnum Engines
- Xtreme Energy XR265HR Hydraulic Roller Camshaft
- 1992-2002 Magnum Engines with 1.6:1 rockers
- Performance cam for 360
- Likes lower gears and exhaust
- Will require computer modification
Chrysler; Dodge; Plymouth; 273; 318; 340; 360; Magnum; LA; Barracuda; 5.2; 5.9; Challenger; Charger; Charger 500; Li' Red Express; Ram; Ramcharger; Cuda; MOPAR
Performance cam for 360. Likes lower gears and exhaust. Will require computer modifications.
Lift: .506"/.506"
Duration: 265/273
Lobe Separation Angle: 114°
RPM Range: 1200-5400
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width2.9
Package Length24.3
Weight9.09 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind NumberXR265HR-14
Exh. Duration Advertised (Deg)273
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.506
Int. Duration @ .050 In. (Deg)216
Basic Operating Rpm Range1,200-5,400
Intake Valve Lift0.506 in (12.852 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)265
Lobe Separation (Deg)114
Rpm Range1200-5400
Advertised Duration265 int./273 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.506
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.506 int./0.506 exh.
QuantitySold individually
Exhaust Valve Lift0.506 in (12.852 mm)
Advertised Intake Duration265
Intake Duration At 050 Inch Lift216
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration273
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift216 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number20-746-9
Package Qty1
Package TypeEA
