COMP CAMSPART NUMBER: 249-21-305-4

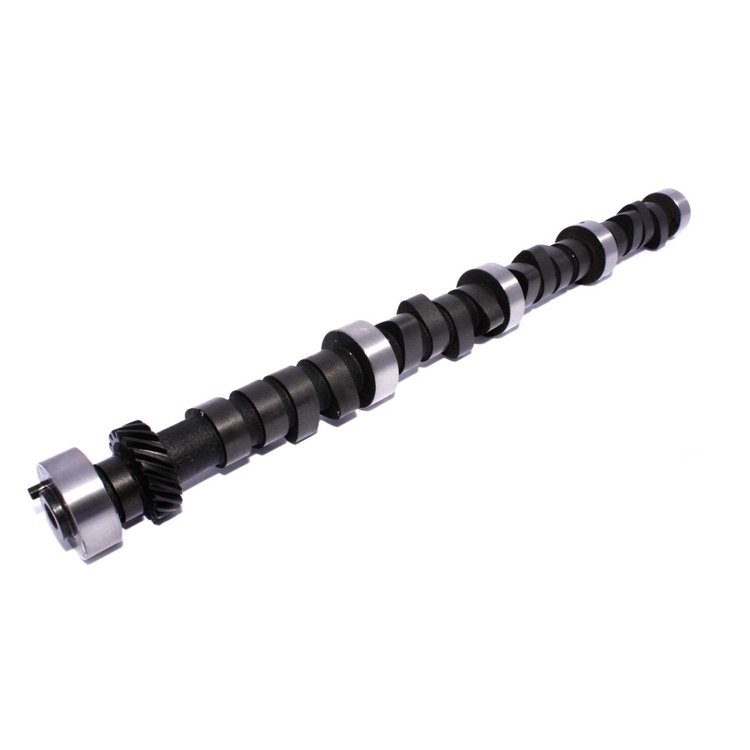

Magnum Muscle Hydraulic Flat Tappet Camshaft Chrysler 383-440ci 1959-00 Lift: .464"/.464"
$30995
Chrysler 383-440ci 1959-80Hydraulic Lifter Magnum Muscle
- Magnum Muscle Hydraulic Flat Tappet Camshaft
- Lift: .464"/.464"
- Duration: 268°/276°
- Lobe Separation Angle: 110°
- RPM Range: 1600-5600
- Replacement for # 2899206
- 383 cu.in., 1968-70, Factory 335 H.P.
- 383 cu.in., 1971, Factory 300 H.P.
- 440 cu.in., 1967-70, Factory 375/390
- 440 cu.in., 1971, Factory 370/385
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Factory I.D. 2806980 for: 383c.i., 1968-70, factory 335 HP, 383c.i., 1971, factory 300 HP, 440c.i., 1967-70, factory 375/390 HP, 440c.i., 1971, factory 370/385 HP.
Chrysler 383-440ci 1959-00
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.5
Weight9.72 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic flat tappet
Grind Number268AH-10
Exh. Duration Advertised (Deg)276
Engine Make/SizeMopar 383-440
Intake Valve Lift With Factory Rocker Arm Ratio (I0.464
Int. Duration @ .050 In. (Deg)222
Basic Operating Rpm Range1,600-5,600
Intake Valve Lift0.464 in (11.786 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)268
Lobe Separation (Deg)110
Rpm Range1600-5600
Advertised Duration268 int./276 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.464
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.464 int./0.464 exh.
Camshaft Gear Attachment1-bolt
QuantitySold individually
Exhaust Valve Lift0.464 in (11.786 mm)
Advertised Intake Duration268
Intake Duration At 050 Inch Lift222
Exhaust Duration At 050 Inch Lift226
Advertised Exhaust Duration276
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift222 int./226 exh.
Valve Springs RequiredYes
Vendor Part Number21-305-4
Package Qty1
Package TypeEA
