Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-223-4

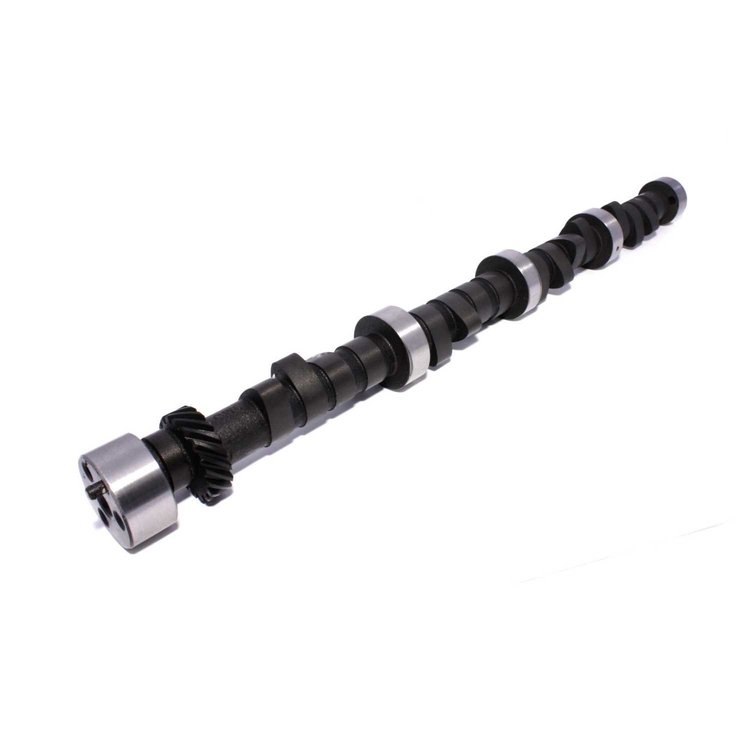

Magnum 268H Hydraulic Flat Tappet Camshaft Lift .477"/.480" Duration 268°/280° RPM Range 1600-5800
$30995
Ships on Sep 04, 2026
Lowest Price GuaranteeChrysler 383-440ci 1959-1980
- Magnum 268H Hydraulic Flat Tappet Camshaft
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Great for street machines, slightly rough idle works with stock converter but best with 1800+ stall.
Lift .477"/.480"
Duration 268°/280°
RPM Range 1600-5800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.3 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberXE268H
Exh. Duration Advertised (Deg)280
Engine Make/SizeMopar 383-440
Intake Valve Lift With Factory Rocker Arm Ratio (I0.477
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range1,600-5,800
Intake Valve Lift0.477 in (12.116 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)268
Lobe Separation (Deg)110
Rpm Range1600-5800
Advertised Duration268 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.48
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.477 int./0.480 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.48 in (12.192 mm)
Advertised Intake Duration268
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number23-223-4
Package Qty1
Package TypeEA
