Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-630-5

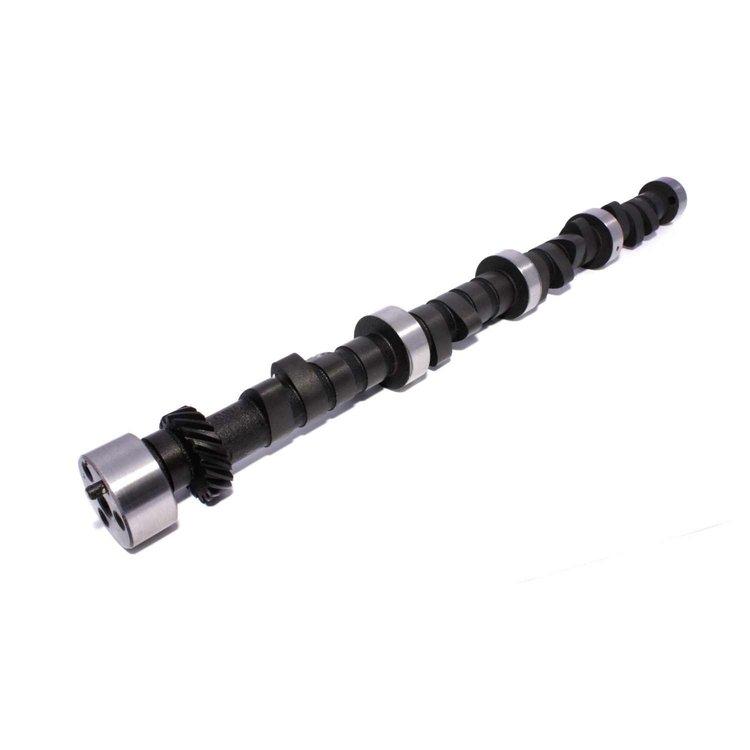

Drag Race Mechanical Flat Tappet Camshaft Chrysler 383-440 1959-80 Three Bolt Lift: .650"/.650"
$32595
Ships on Sep 15, 2026
Lowest Price GuaranteeChrysler 383-440 1959-80
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .650"/.650"
- Duration: 290°/290°
- Lobe Separation Angle: 108°
- RPM Range: 5000-7200
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
440 with 5500+ stall, 5.13 gear, 11:1+ compression, 850+ CFM carb.
Chrysler 383-440 1959-80
Three Bolt
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.2
Weight9.2 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)290
Cam StyleMechanical flat tappet
Grind NumberCRB3 324A-8
Exh. Duration Advertised (Deg)324
Engine Make/SizeMopar 383-440
Intake Valve Lift With Factory Rocker Arm Ratio (I0.65
Int. Duration @ .050 In. (Deg)290
Basic Operating Rpm Range5,000-7,200
Intake Valve Lash0.026 in (0.66 mm)
Intake Valve Lift0.65 in (16.51 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)324
Lobe Separation (Deg)108
Rpm Range5000-7200
Advertised Duration324 int./324 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.65
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.650 int./0.650 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.028 in (0.711 mm)
Exhaust Valve Lift0.65 in (16.51 mm)
Advertised Intake Duration324
Intake Duration At 050 Inch Lift290
Exhaust Duration At 050 Inch Lift290
Advertised Exhaust Duration324
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift290 int./290 exh.
Valve Springs RequiredYes
Vendor Part Number23-630-5
Package Qty1
Package TypeEA
