Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-631-5

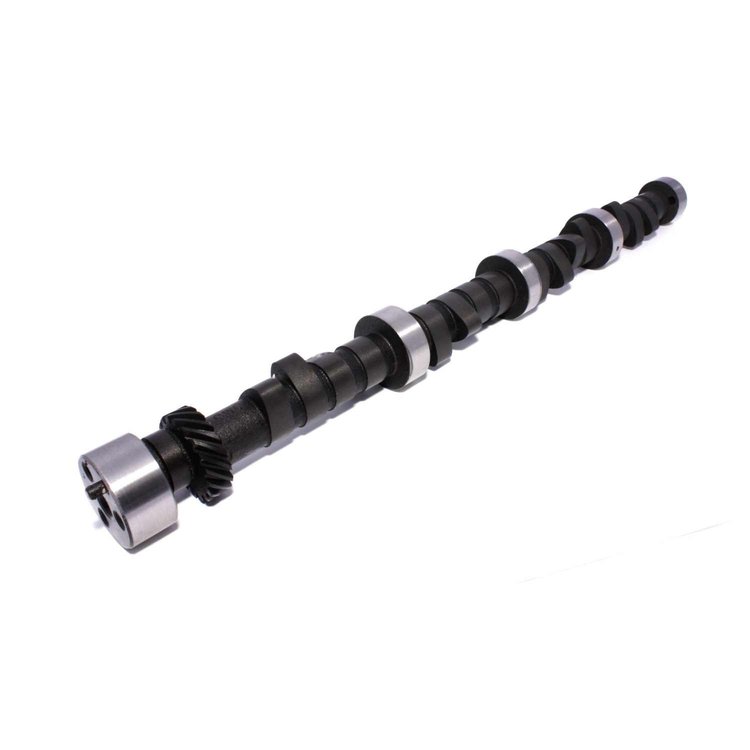

Drag Race Mechanical Flat Tappet Camshaft Chrysler 383-440 1959-80 Three Bolt Lift: .550"/.570"
$32595
Ships on 09/15/2026
Lowest Price GuaranteeChrysler 383-440 1959-80
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .550"/.570"
- Duration: 286°/296°
- Lobe Separation Angle: 108°
- RPM Range: 3500-6500
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Good bracket cam. 10.5:1+ compression, 3500+ stall in 440, 3800+ in 383.
Chrysler 383-440 1959-80
Three Bolt
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.1
Weight9.4 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)266
Cam StyleMechanical flat tappet
Grind NumberCRB3 XTQ286S-8
Exh. Duration Advertised (Deg)296
Engine Make/SizeChrysler 383-440
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)256
Basic Operating Rpm Range3,500-6,500
Intake Valve Lash0.026 in (0.66 mm)
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)286
Lobe Separation (Deg)108
Rpm Range3500-6500
Advertised Duration286 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.57
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.570 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.028 in (0.711 mm)
Exhaust Valve Lift0.57 in (14.478 mm)
Advertised Intake Duration286
Intake Duration At 050 Inch Lift256
Exhaust Duration At 050 Inch Lift266
Advertised Exhaust Duration296
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift256 int./266 exh.
Valve Springs RequiredYes
Vendor Part Number23-631-5
Package Qty1
Package TypeEA
