Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-634-5

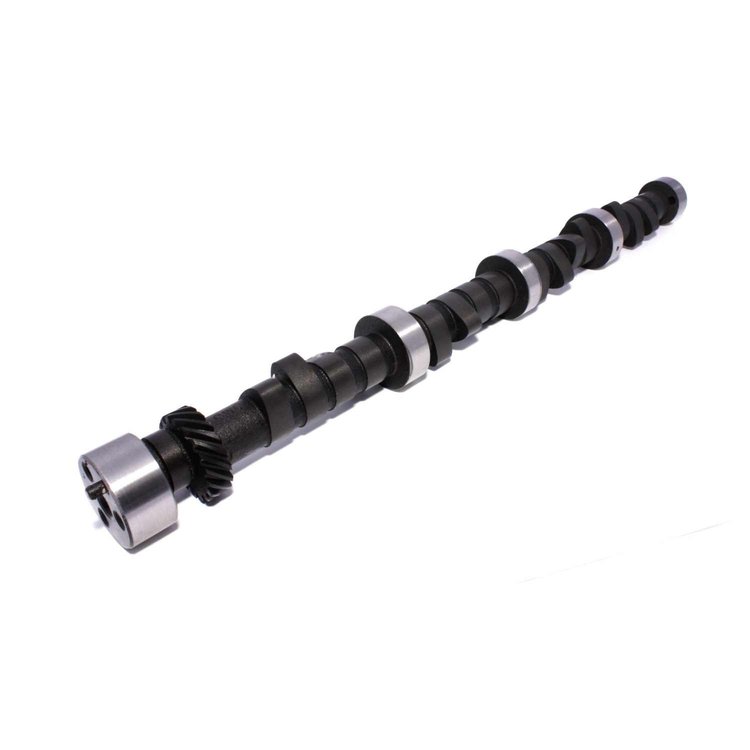

Drag Race Mechanical Flat Tappet Camshaft Chrysler 383-440 1959-80 Three Bolt Lift: .650"/.630"
$32595
Ships on 09/15/2026
Lowest Price GuaranteeChrysler 383-440 1959-80
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .650"/.630"
- Duration: 305°/320°
- Lobe Separation Angle: 110°
- RPM Range: 5000-7500
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Great Super Street, Super Gas or bracket cam. Best in 470+ engines with 12:1 compression and 5500+ stall.
Chrysler 383-440 1959-80
Three Bolt
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.1
Package Length24.2
Weight9.1 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)287
Cam StyleMechanical flat tappet
Grind NumberTL304S-8
Exh. Duration Advertised (Deg)320
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.65
Int. Duration @ .050 In. (Deg)279
Basic Operating Rpm Range5,000-7,500
Intake Valve Lash0.018 in (0.457 mm)
Intake Valve Lift0.65 in (16.51 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)305
Lobe Separation (Deg)110
Rpm Range5000-7500
Advertised Duration305 int./320 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.63
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.650 int./0.630 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.63 in (16.002 mm)
Advertised Intake Duration305
Intake Duration At 050 Inch Lift279
Exhaust Duration At 050 Inch Lift287
Advertised Exhaust Duration320
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift279 int./287 exh.
Valve Springs RequiredYes
Vendor Part Number23-634-5
Package Qty1
Package TypeEA
