Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-703-9

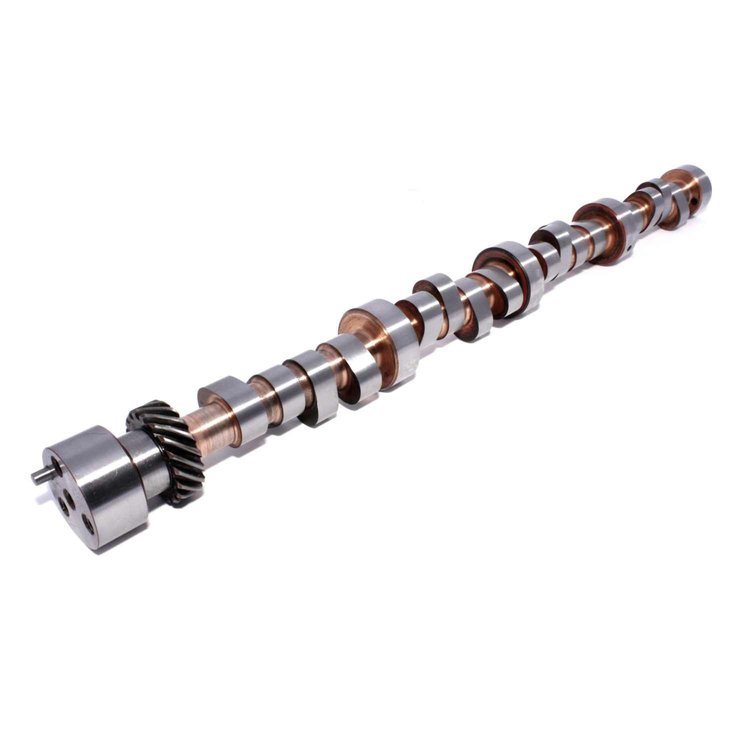

Xtreme Energy Mechanical Roller Camshaft Chrysler 383-440ci 1959-1980 Three Bolt Lift: .582"/.588"
$62295
3 left in stock
Ships Tomorrow
Lowest Price GuaranteeChrysler 383-440 C.I. 8 CYL. 1959-1980
- Xtreme Energy Mechanical Roller Camshaft
- Lift: .582"/.588"
- Duration: 292°/297°
- Lobe Separation Angle: 110°
- RPM Range: 3500-6600
Mechanical Roller-Strong mid to upper RPM power 10.5:1 compression with 3500+ stall. Radical idle273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Strong mid to upper RPM power, 10.5:1 compression with 3500+ stall. Radical idle.
Chrysler 383-440ci 1959-1980 Three Bolt
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.4
Weight9.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleMechanical roller tappet
Grind NumberCRB3 XR292R-10
Exh. Duration Advertised (Deg)297
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.582
Int. Duration @ .050 In. (Deg)254
Basic Operating Rpm Range3,500-6,600
Intake Valve Lift0.582 in (14.783 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range3500-6600
Advertised Duration292 int./297 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.588
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.582 int./0.588 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.588 in (14.935 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift254
Exhaust Duration At 050 Inch Lift260
Advertised Exhaust Duration297
Lifter TypeMechanical Roller
Duration At 050 Inch Lift254 int./260 exh.
Valve Springs RequiredYes
Vendor Part Number23-703-9
Package Qty1
Package TypeEA
