Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-704-9

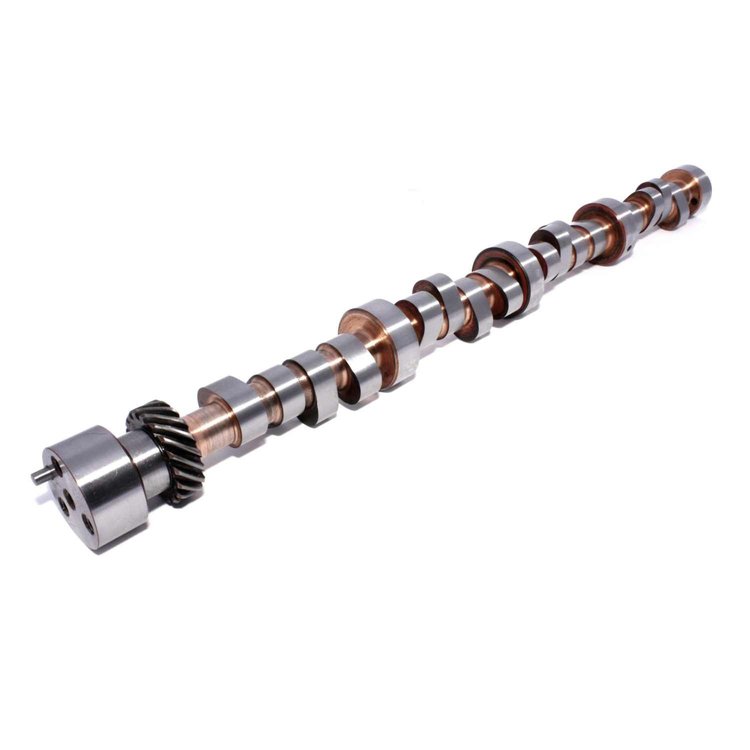

Drag Race Mechanical Roller Camshaft Lift .693"/.695" Duration 315/321 RPM Range 5500-7800
$62295
Ships on 09/15/2026
Lowest Price GuaranteeChrysler 383-440 C.I. 8 CYL. 1959-1980
- Drag Race Mechanical Roller Camshaft
Lift .693"/.695"
Duration 315/321
RPM Range 5500-7800
Mechanical Roller-Quick 16 Super Comp for medium to large cubic inch
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Quick 16, Super Comp for medium to large cubic inch.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.4
Weight9.25 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)288
Cam StyleMechanical roller tappet
Grind NumberCRB3 REV315R-6
Exh. Duration Advertised (Deg)321
Engine Make/SizeChevy Big Block (396-454)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.693
Int. Duration @ .050 In. (Deg)282
Basic Operating Rpm Range5,500-7,800
Intake Valve Lash0.026 in (0.66 mm)
Intake Valve Lift0.693 in (17.602 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)315
Lobe Separation (Deg)106
Rpm Range5500-7800
Advertised Duration315 int./321 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.665
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.693 int./0.665 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.028 in (0.711 mm)
Exhaust Valve Lift0.665 in (16.891 mm)
Advertised Intake Duration315
Intake Duration At 050 Inch Lift282
Exhaust Duration At 050 Inch Lift288
Advertised Exhaust Duration321
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift282 int./288 exh.
Valve Springs RequiredYes
Vendor Part Number23-704-9
Package Qty1
Package TypeEA
