Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-732-9

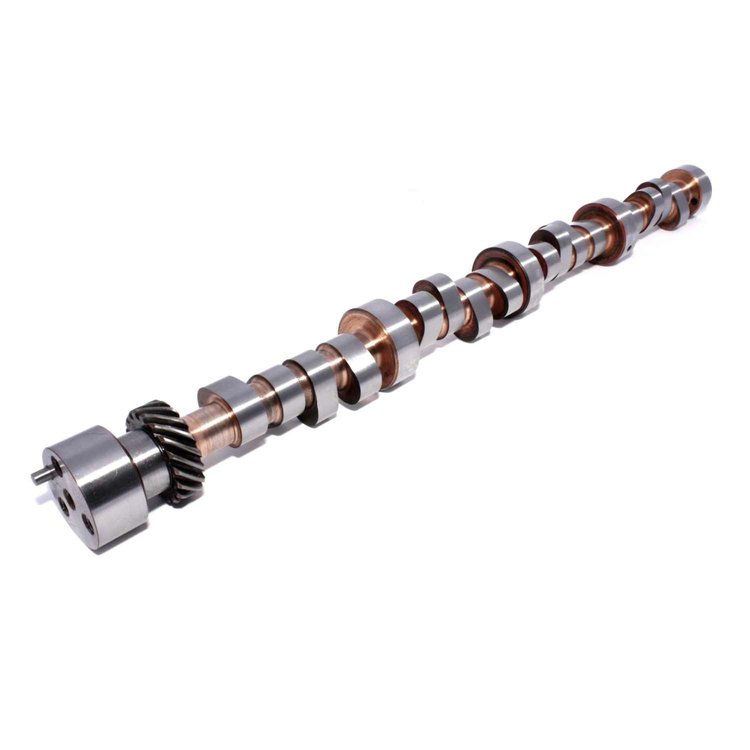

Drag Race Mechanical Roller Camshaft Lift .692"/.692" Duration 320/320 RPM Range 5000-7200
$62295
Ships on 09/15/2026
Lowest Price GuaranteeChrysler 383-440 C.I. 8 CYL. 1959-1980
- Drag Race Mechanical Roller Camshaft
Lift .692"/.692"
Duration 320/320
RPM Range 5000-7200
Mechanical Roller-Super Gas Super Comp. Fast Brackets. 5000 stall.
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Super Gas, Super Comp, Fast Brackets. 5000+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width2.9
Package Length24.3
Weight9.25 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)286
Cam StyleMechanical roller tappet
Grind NumberCRB3 320T-R8
Exh. Duration Advertised (Deg)320
Engine Make/SizeMopar 383-440
Intake Valve Lift With Factory Rocker Arm Ratio (I0.692
Int. Duration @ .050 In. (Deg)286
Basic Operating Rpm Range5,000-7,200
Intake Valve Lash0.028 in (0.711 mm)
Intake Valve Lift0.692 in (17.577 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)320
Lobe Separation (Deg)108
Rpm Range5000-7200
Advertised Duration320 int./320 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.692
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.692 int./0.692 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.03 in (0.762 mm)
Exhaust Valve Lift0.692 in (17.577 mm)
Advertised Intake Duration320
Intake Duration At 050 Inch Lift288
Exhaust Duration At 050 Inch Lift288
Advertised Exhaust Duration320
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift288 int./288 exh.
Valve Springs RequiredYes
Vendor Part Number23-732-9
Package Qty1
Package TypeEA
