Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-741-9

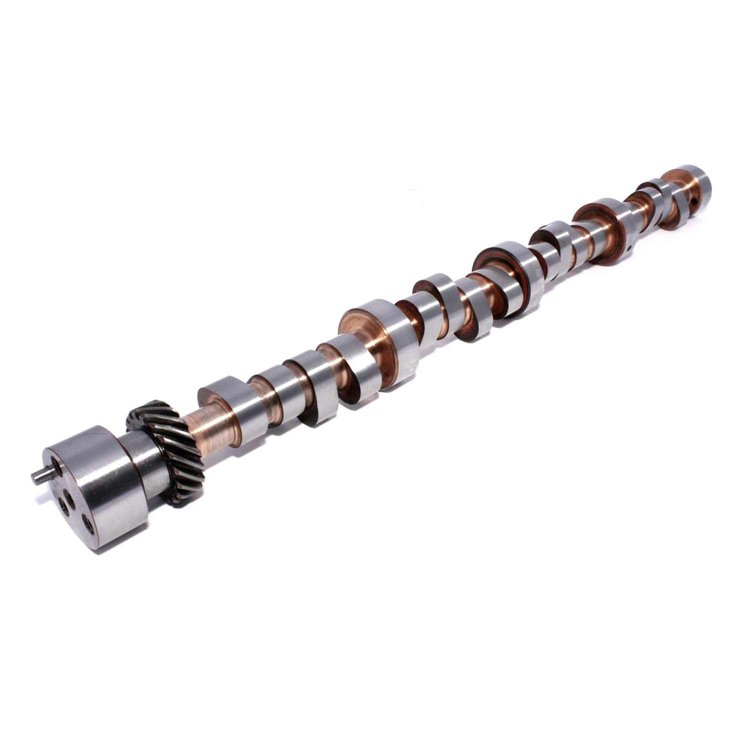

Magnum Mechanical Roller Camshaft Chrysler 383-440ci 1959-1980 Lift: .550"/.550"
$62295
Ships on 09/15/2026
Lowest Price GuaranteeChrysler 383-440ci 1959-1980
- Magnum Mechanical Roller Camshaft
- Lift: .550"/.550"
- Duration: 288°/288°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6200
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Great all around power in 383 and 400. 750-830 CFM carb. 3500+ converter in 383. 3000+ in 440. Super torque and driveability, 4.10-4.56 gear.
Chrysler 383-440ci 1959-1980
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.2
Weight9.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)243
Cam StyleMechanical roller tappet
Grind NumberCRB3 288R-10
Exh. Duration Advertised (Deg)288
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)243
Basic Operating Rpm Range3,000-6,200
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)110
Rpm Range3000-6200
Advertised Duration288 int./288 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.550 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration288
Intake Duration At 050 Inch Lift243
Exhaust Duration At 050 Inch Lift243
Advertised Exhaust Duration288
Lifter TypeMechanical Roller
Duration At 050 Inch Lift243 int./243 exh.
Valve Springs RequiredYes
Vendor Part Number23-741-9
Package Qty1
Package TypeEA
