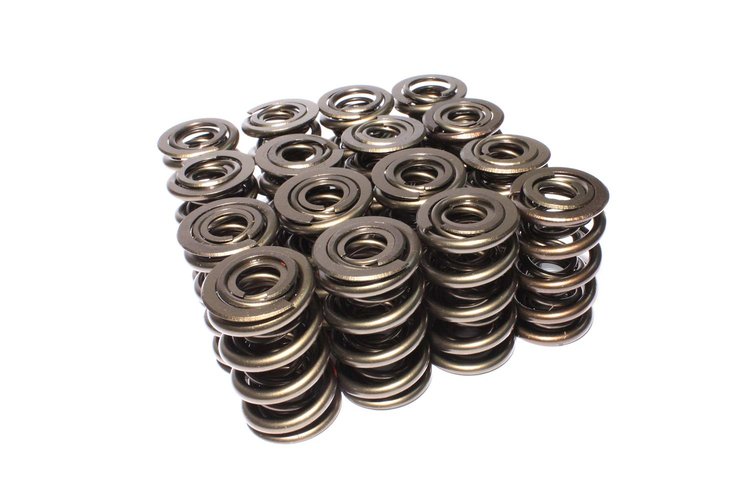

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26028-16
Triple Valve Springs O.D.: 1.686"
$59276$740.95You Save$148.19
Ships on 09/09/2026
Lowest Price GuaranteeHi-Tech Triple Valve Springs
- Triple Valve Springs
- O.D.: 1.686"
- I.D.: .634"
- Seat Load: 342 lbs/in @ 2.200
- Open Load: 1061 lbs/in @1.200
- Coil Bind: 1.161"
- Rate: 712 lbs/in.
- 16/pkg.
- Made From Super Clean Wire
- CNC Machined
- Pre-Set For Initial Load Loss
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
- Triple Valve Springs from Comp Cams deliver maximum strength, durability and valve train stability. Engineered from Super Clean wire and subjected to extensive quality control measures, the triple spring design creates a stronger valve spring that can easily handle the increased lift and extreme demands found in aggressive applications. Comp Cams Triple Valve Springs exceed the expectations of today's engine builders and racers!
Part TypeValve Spring Kit
Product LineComp Cams Hi-Tech Triple Valve Springs
BrandCOMP CAMS
Package Height3.0
Package Width3.7
Package Length13.5
Weight7.3 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.15 in (29.21 mm)
Damper Spring IncludedNo
Spring Rate728 lbs./in.
PositionN/A
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)1074
Installed Pressure (Lbs.)346
QuantitySold as a set of 16
Installed Height2.2 in (55.88 mm)
Inside Diameter Of Inner Spring0.635 in (16.129 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.677 in (42.6 mm)
Inside Diameter Of Outer Spring1.195 in (30.353 mm)
Inside Diameter0.635 in (16.129 mm)
Spring TypeTriple
Spring Rate (Lbs./In.)728
Outside Diameter1.68 in (42.7 mm)
Number Of Springs Per ValveTriple
Camshaft TypeOEM
Vendor Part Number26028-16
Package Qty1
Package TypeEA
