Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26095-4

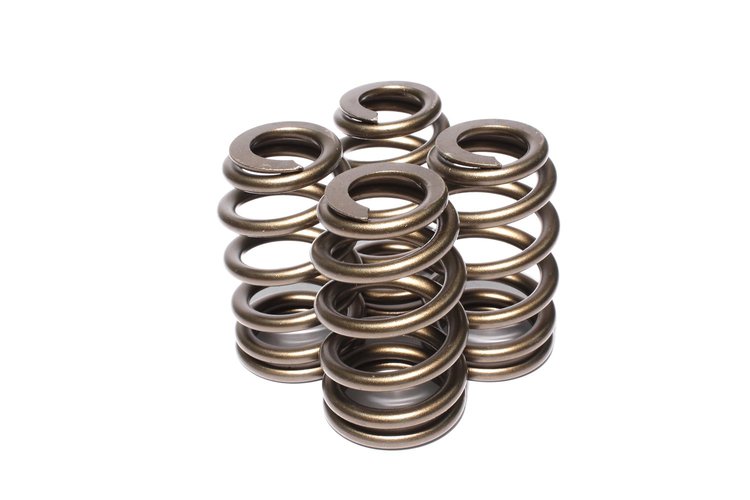

Beehive Valve Spring Universal
$15495
Ships on 09/04/2026
Lowest Price GuaranteeUniversal
- Beehive Valve Spring
- Universal
- O.D. Base: 1.590
- 4/pkg
Specs:
OD: Top 1.185", Bottom 1.589"
ID: Top .731", Bottom 1.135"
Seat Pressure: 155 lbs @ 1.88'
Open Pressure: 377 lbs @ 1.280'
Coil Bind: 1.230"
Spring Rate: 370 lbs/inValve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height1.5
Package Width5.75
Package Length9.5
Weight0.39 PG
Part CategoryPerformance Parts
Coil Bind HeightOEM
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)370
Installed Pressure (Lbs.)150
Spring TypeSingle
Spring Rate (Lbs./In.)293
Part FitmentSemi Universal
Outside Diameter1.589 in (40.4 mm)
Installed Height2 in (50.8 mm)
Camshaft TypeHydraulic
Vendor Part Number26095-4
Package Qty1
Package TypeEA
