Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26115-16

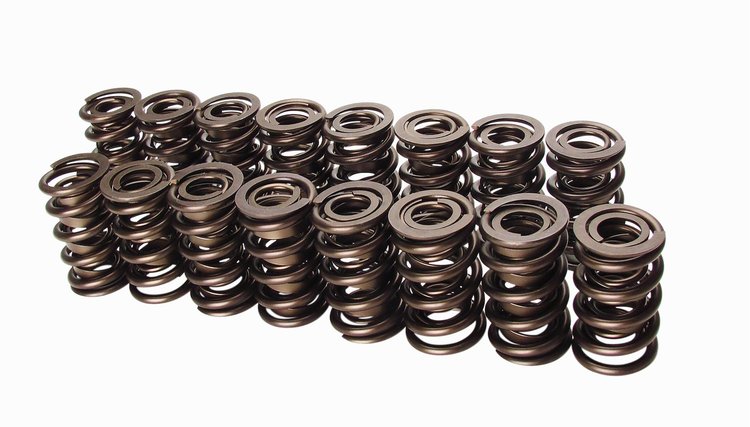

Dual Valve Springs Outer Spring O.D.: 1.560 in.
$67895
Ships on 09/08/2026
Lowest Price Guarantee1.560 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.560 in.
- Outer Spring I.D.: 1.114 in.
- Inner Spring I.D.: 0.709 in.
- Seat Load: 225lbs
- Coil Bind: 1.165 in.
- Spring Rate: 544lbs/in.
- With damper
- Set of 16
- Made From Super Clean Wire
- CNC Machined
- Pre-Set For Initial Load Loss
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.8
Package Length13.6
Weight6.0 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind HeightOEM
Damper Spring IncludedNo
Spring Rate544 lbs./in.
PositionN/A
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)636
Installed Pressure (Lbs.)228
QuantitySold as a set of 16
Installed Height2.05 in (52.07 mm)
Inside Diameter Of Inner Spring0.719 in (18.263 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.549 in (39.3 mm)
Inside Diameter Of Outer Spring1.125 in (28.575 mm)
Inside Diameter0.719 in (18.263 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)494
Outside Diameter1.549 in (39.3 mm)
Number Of Springs Per ValveDual
Camshaft TypeRoller
Vendor Part Number26115-16
Package Qty1
Package TypeEA
