Product Discontinued

COMP CAMSPART NUMBER: 249-26120-1

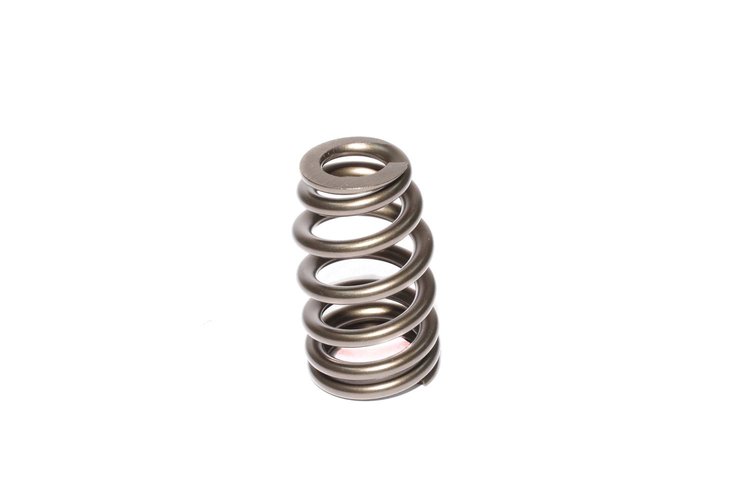

Beehive Valve Spring Universal

Name: Beehive Valve Spring Universal
Brand: COMP CAMS
SKU: 249-26120-1
Price: 29.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Universal

Universal
O.D. Base: 1.445
1/pkg

Specs
OD: Top 1.095" Bottom 1.445"
ID: Top .650" Bottom 1.000"
Seat Pressure: 155 lbs @ 1.880"
Open Pressure: 377 lbs @ 1.280"
Coil Bind: 1.230"
Spring Rate: 370 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring

BrandCOMP CAMS

Package Height2.1

Package Width2.8

Package Length4.3

Weight0.3 PG

Part CategoryPerformance Parts

CoatedNo

Damper Spring IncludedNo

Spring Rate370 lbs./in.

PositionN/A

Open Height1.28 in (32.5 mm)

Open Pressure (Lbs.)377

Installed Pressure (Lbs.)155

QuantitySold individually

Installed Height1.88 in (47.752 mm)

Valve Spring StyleBeehive

Outside Diameter Of Outer Spring1.445 in (36.7 mm)

Inside Diameter Of Outer Spring0.65 in (16.51 mm)

Inside Diameter0.650/1

Spring TypeSingle

Spring Rate (Lbs./In.)370

Part FitmentSemi Universal

Outside Diameter1.445 in (36.7 mm)

Number Of Springs Per ValveSingle

Camshaft TypeOEM

Vendor Part Number26120-1

Package Qty1

Package TypeEA
