COMP CAMSPART NUMBER: 249-26123-32

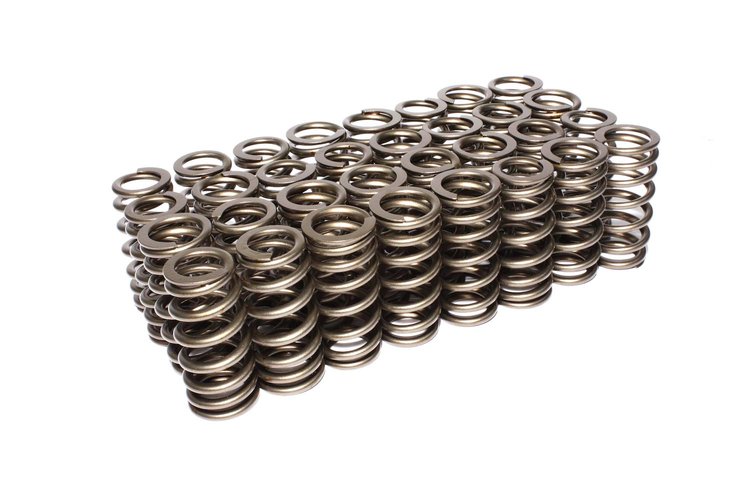

Beehive Valve Spring Ford 4.6L 4V

Name: Beehive Valve Spring Ford 4.6L 4V
Brand: COMP CAMS
SKU: 249-26123-32
Price: 659.95 USD
Availability: InStock

^$659⁹⁵

2 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Ford Modular

Ford 4.6L 4V
O.D. Base: 1.105
32/pkg

Specs
OD: Top .943" Bottom 1.105"
ID: Top .580" Bottom .742"
Seat Pressure: 90 lbs @ 1.470'
Open Pressure: 252 lbs @ .970'
Coil Bind: .900"
Spring Rate: 324 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring Kit

BrandCOMP CAMS

Package Height3.0

Package Width3.9

Package Length13.7

Weight3.35 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height0.9 in (22.86 mm)

Damper Spring IncludedNo

Spring Rate324 lbs./in.

PositionN/A

Open Height0.97 in (24.6 mm)

Open Pressure (Lbs.)252

Installed Pressure (Lbs.)90

QuantitySold as a set of 32

Installed Height1.47 in (37.338 mm)

Valve Spring StyleBeehive

Outside Diameter Of Outer Spring1.105 in (28.1 mm)

Inside Diameter Of Outer Spring0.58 in (14.732 mm)

Inside Diameter0.580/0.742

Spring TypeSingle

Spring Rate (Lbs./In.)324

Part FitmentSemi Universal

Outside Diameter1.105 in (28.1 mm)

Number Of Springs Per ValveSingle

Camshaft TypeOEM

Vendor Part Number26123-32

Package Qty1

Package TypeEA
