Beehive Valve Spring Ford 4.6L/5.4L 2V & 3V
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-26125-16

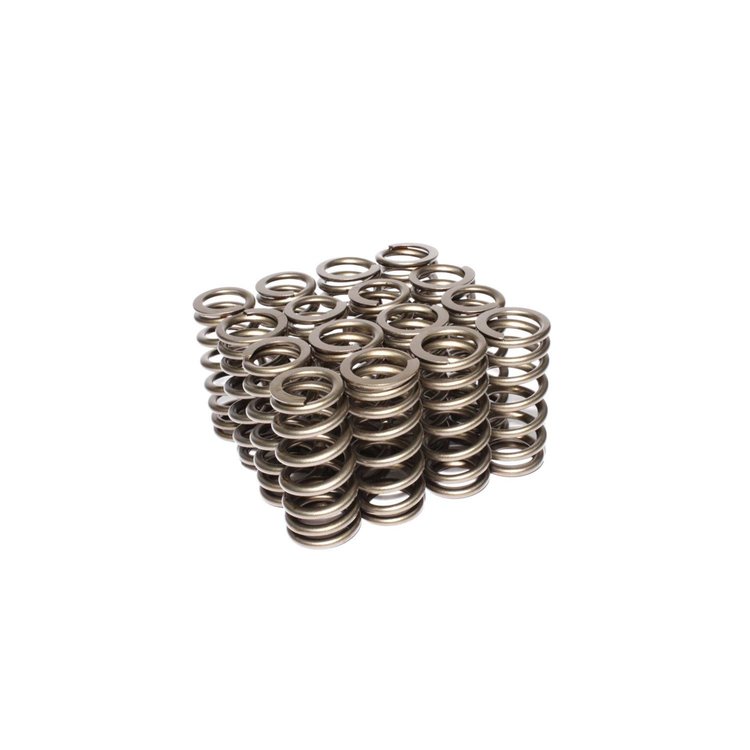

Beehive Valve Spring Ford 4.6L/5.4L 2V & 3V

$32995
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ford Modular
    Beehive Valve Spring
  • Ford 4.6L/5.4L 2V & 3V
  • O.D. Base: 1.101
  • 16/pkg

    Installed height 1.640" @ 120lbs
  • Open height 1.040" @ 275lbs
  • Rate 258#/In
  • Coil bind .902

    Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

    Advanced Beehive Valve Spring Technology

    Comp Cams Beehive Valve Springs are revolutionizing performance street/strip applications! These valve springs deliver increased valve train stability while offering a reduction in weight. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and the retainer. Using Comp Spintron testing equipment, the Beehive spring was engineered to maximize "harmonic resistance" through reduced mass and unique coil spacing.

    Show More

    With highly reduced internal spring harmonics, engines equipped with these state-of-the-art Beehive valve springs rev higher and live longer as compared with other "performance" springs. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.

Part TypeValve Spring Kit
Product LineComp Cams Beehive Valve Springs
BrandCOMP CAMS
Package Height2.3
Package Width2.9
Package Length10.4
Weight1.95 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height0.902 in (22.911 mm)
Damper Spring IncludedNo
PositionN/A
Open Height1.75 in (44.5 mm)
Open Pressure (Lbs.)275
Installed Pressure (Lbs.)120
QuantitySold as a set of 16
Installed Height1.64 in (41.656 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.061 in (26.9 mm)
Inside Diameter Of Outer Spring0.738 in (18.745 mm)
Inside Diameter0.650/0.738
Spring TypeSingle
Spring Rate (Lbs./In.)258
Outside Diameter1.101 in (28 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number26125-16
Package Qty1
Package TypeEA
