Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26125-24

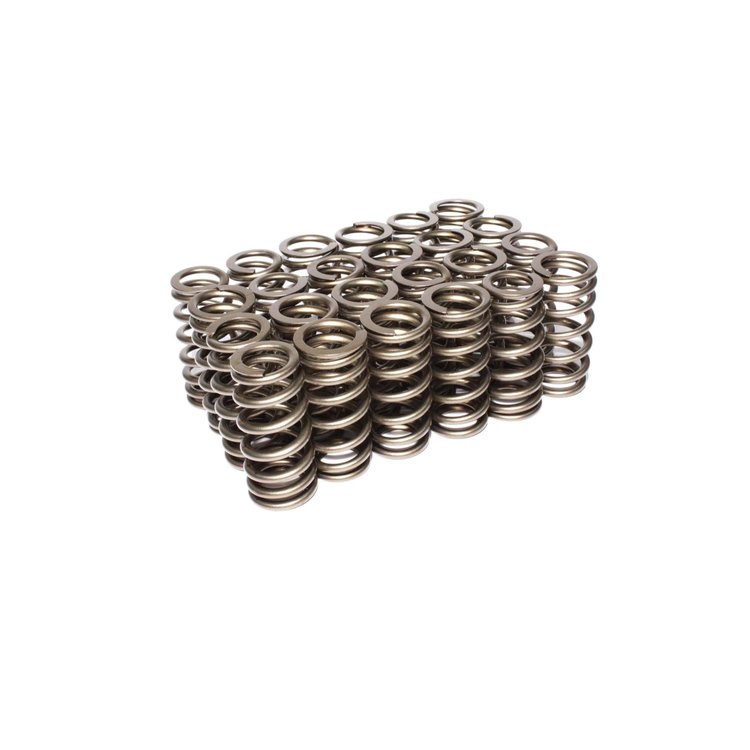

Beehive Valve Spring Ford 4.6L/5.4L 2V & 3V
$60895
Ships on 09/08/2026
Lowest Price GuaranteeFord Modular
- Beehive Valve Spring
- Ford 4.6L/5.4L 2V & 3V
- O.D. Base: 1.101
- 24/pkg
Specs
OD: Top 1.013" Bottom 1.101"
ID: Top .650" Bottom .738"
Seat Pressure: 120 lbs @ 1.640"
Open Pressure: 275 lbs @ 1.040"
Coil Bind: .970"
Spring Rate: 258 lbs/inValve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height3.0
Package Width3.75
Package Length13.5
Weight2.7 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height0.902 in (22.911 mm)
Damper Spring IncludedNo
PositionN/A
Open Height1.75 in (44.5 mm)
Open Pressure (Lbs.)275
Installed Pressure (Lbs.)120
QuantitySold as a set of 24
Installed Height1.64 in (41.656 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.061 in (26.9 mm)
Inside Diameter Of Outer Spring0.738 in (18.745 mm)
Inside Diameter0.650/0.738
Spring TypeSingle
Spring Rate (Lbs./In.)258
Part FitmentSemi Universal
Outside Diameter1.101 in (28 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number26125-24
Package Qty1
Package TypeEA
