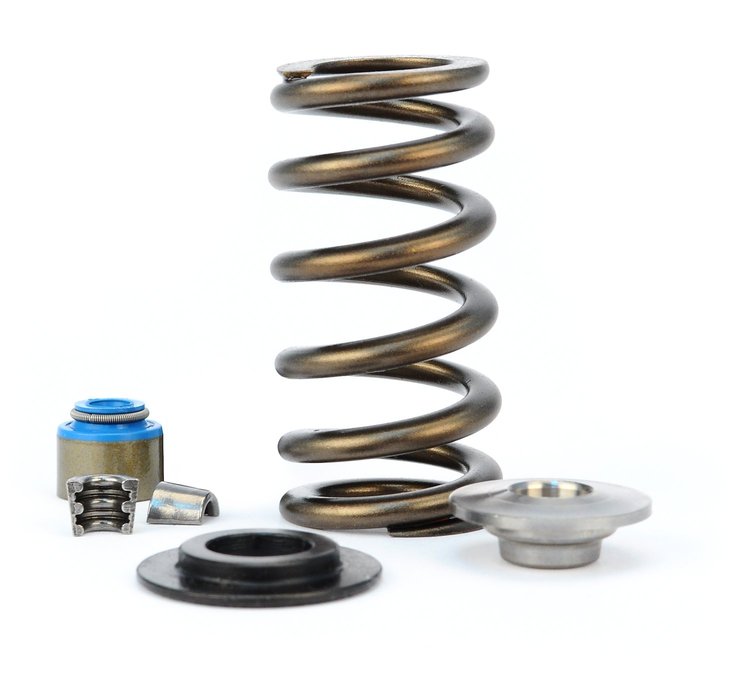

Vehicle Info NeededVALVE SPRING KIT FORD COY TOOL ST L RETAINERS
Ships on 10/14/2026
Lowest Price Guarantee- Beehive Valve Spring
- Ford 4.6L/5.4L 2V & 3V
- O.D. Base: 1.101
- Includes:
- 32 Springs
- 32 Seats
- 32 Tool Steel Retainers
- 32 Seals
Specs
OD: Top 1.013" Bottom 1.101"
ID: Top .650" Bottom .738"
Seat Pressure: 120 lbs @ 1.640"
Open Pressure: 275 lbs @ 1.040"
Coil Bind: .970"
Spring Rate: 258 lbs/inValve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Designed for '11-'14 and '15+ 5.0L Coyote and Boss engines, this beehive spring kit offers increased valve control at high RPM while allowing for higher valve lift from performance cams. Includes tool steel retainers, seals and seats.
Advanced Beehive Valve Spring Technology
Comp Cams Beehive Valve Springs are revolutionizing performance street/strip applications! These valve springs deliver increased valve train stability while offering a reduction in weight. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and the retainer. Using Comp Spintron testing equipment, the Beehive spring was engineered to maximize "harmonic resistance" through reduced mass and unique coil spacing.
Show More
With highly reduced internal spring harmonics, engines equipped with these state-of-the-art Beehive valve springs rev higher and live longer as compared with other "performance" springs. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.
