Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

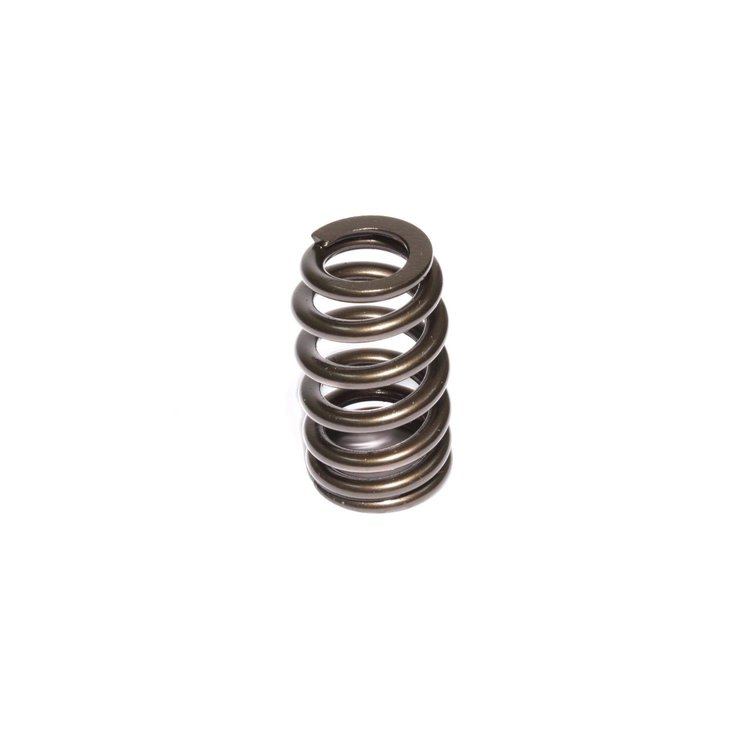

GM Gen III/IV LS
- Beehive Valve Spring
- Chevy LS1/LS2/LS6
- O.D. Base: 1.290
- 1/pkg
Designed for Hydraulic Roller Cams - .600" Maximum Lift, 1.290" O.D.
- Originally designed for LS1, LS2, and LS6 engines
- Will work in 5.7L Hemi engine with Part #249-761 or #249-762 retainer as well as many other engine combinations.
Specs
OD: Top 1.055" Bottom 1.290"
ID: Top .650" Bottom .885"
Seat Pressure: 105 lbs @ 1.800"
Open Pressure: 293 lbs @ 1.200"
Coil Bind: 1.100"
Spring Rate: 313 lbs/inValve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.5
Package Width2.7
Package Length4.0
Weight0.16 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.14 in (28.956 mm)
Damper Spring IncludedNo
Spring Rate313 lbs./in.
PositionN/A
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)293
Installed Pressure (Lbs.)105
QuantitySold individually
Installed Height1.8 in (45.72 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.29 in (32.8 mm)
Inside Diameter Of Outer Spring0.885 in (22.479 mm)
Inside Diameter0.660/0.885
Spring Rate (Lbs./In.)313
Part FitmentSemi Universal
Outside Diameter1.29 in (32.8 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number26915-1
Package Qty1
Package TypeEA
