Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26915CS-KIT
Beehive Valve Spring Kit Chevy LS1/LS2/LS6
$47195
3 left in stock
Ships Today
Lowest Price GuaranteeGM Gen III/IV LS
- Beehive Valve Spring Kit
- Chevy LS1/LS2/LS6
- O.D. Base: 1.290

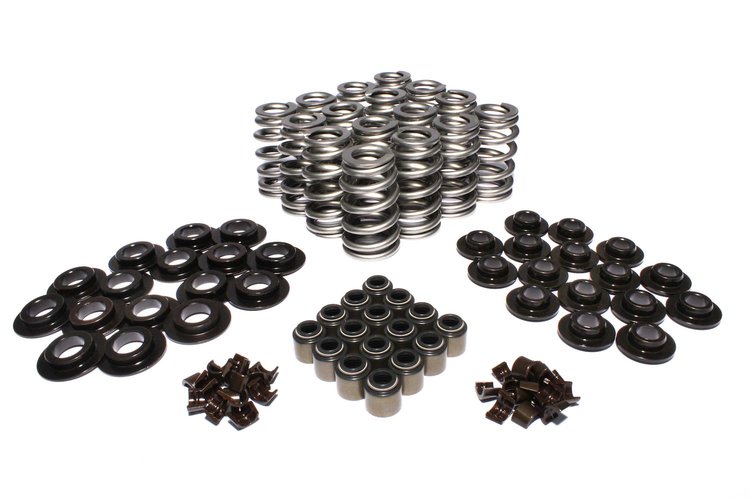

Kit includes: 249-26915-16 Valve Springs, 249-774-16 Steel Retainers, 249-623-16 7° Steel Valve Locks, 249-511-16 Valve Seals, And 249-4705-16 Spring Seats.
Specs - OD: Top 1.055" Bottom 1.290"
- ID: Top .650" Bottom .885"
- Seat Pressure: 105 lbs @ 1.800'
- Open Pressure: 293 lbs @ 1.200'
- Coil Bind: 1.100"
- Spring Rate: 313 lbs/in
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Including properly matched quality beehive valve springs, 7 degree locks, viton seals, hardened seats and lightweight tool steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .600" valve lift.
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.6
Package Width6.4
Package Length11.9
Weight4.55 PG
Part CategoryPerformance Parts
CoatedNo
Installed Pressure (Lbs.)105
Locks IncludedYes
Installed Height1.8 in (45.72 mm)
Retainers IncludedYes
Lock Style7 degree
Inside Diameter0.660/0.885
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Coil Bind Height1.14 in (28.956 mm)
Damper Spring IncludedNo
Spring Rate313 lbs./in.
PositionN/A
Open Height1.2 in (30.5 mm)
Lock Groove Quantity1-groove
Open Pressure (Lbs.)293
QuantitySold as a kit
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.29 in (32.8 mm)
Inside Diameter Of Outer Spring0.65 in (16.51 mm)
Lock MaterialHardened steel
Spring Rate (Lbs./In.)313
Outside Diameter1.29 in (32.8 mm)
Retainer MaterialSteel
Vendor Part Number26915CS-KIT
Package Qty1
Package TypeEA
