Beehive Valve Spring Kit Chevy LS1/LS2/LS6
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-26918CS-KIT

Beehive Valve Spring Kit Chevy LS1/LS2/LS6

$48295
4 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Valve Spring Compressor [Stud Mount]

JEGS

Valve Spring Compressor [Stud Mount]

Part Number : 555-80521
$5299$58.99
You Save$6.00
Valve Spring Compressor [Stud Mount]

JEGS

Valve Spring Compressor [Stud Mount]

Part Number : 555-80518
$919$9.99
You Save$0.80

GM Gen III/IV LS
    Beehive Valve Spring Kit <
  • Chevy LS1/LS2/LS6
  • O.D. Base: 1.310

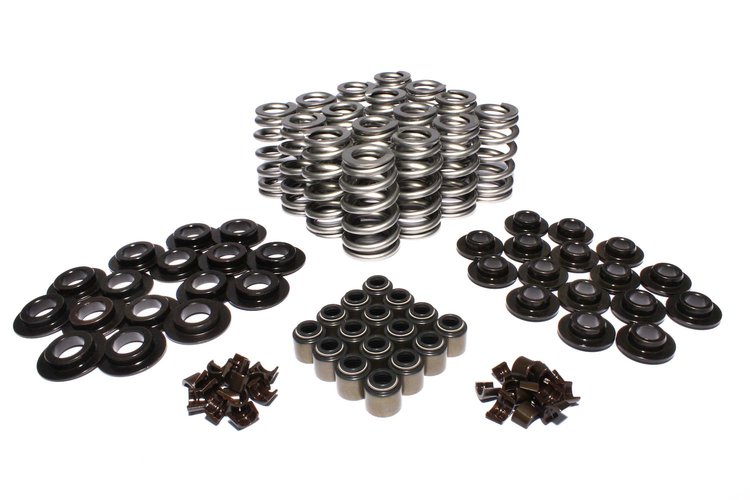

    Kit includes: 249-26918-16 Valve Springs, 249-774-16 Steel Retainers, 249-623-16 7° Valve Locks, 249-511-16 Valve Seals, And 249-4705-16 Spring Seats

    Specs
  • OD: Top 1.075" Bottom 1.310"
  • ID: Top .650" Bottom .885"
  • Seat Pressure: 125 lbs @ 1.800'
  • Open Pressure: 367 lbs @ 1.150'
  • Coil Bind: 1.100"
  • Spring Rate: 372 lbs/in

    GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


    Including properly matched quality beehive valve springs, 7 degree locks, viton seals, hardened seats and chromemoly steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .625" valve lift.

    Advanced Beehive Valve Spring Technology

    Comp Cams Beehive Valve Springs are revolutionizing performance street/strip applications! These valve springs deliver increased valve train stability while offering a reduction in weight. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and the retainer. Using Comp Spintron testing equipment, the Beehive spring was engineered to maximize "harmonic resistance" through reduced mass and unique coil spacing.

    Show More

    With highly reduced internal spring harmonics, engines equipped with these state-of-the-art Beehive valve springs rev higher and live longer as compared with other "performance" springs. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.

Part TypeValve Spring Kit
Product LineComp Cams Beehive Valve Springs
BrandCOMP CAMS
Package Height2.7
Package Width6.4
Package Length12.0
Weight4.6 PG
Part CategoryPerformance Parts
CoatedNo
Installed Pressure (Lbs.)125
Locks IncludedYes
Installed Height1.8 in (45.72 mm)
Retainers IncludedYes
Lock Style7 degree
Inside Diameter0.660/0.885
Spring TypeSingle
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Damper Spring IncludedNo
Spring Rate372 lbs./in.
PositionN/A
Open Height1.15 in (29.2 mm)
Lock Groove Quantity1-groove
Open Pressure (Lbs.)367
QuantitySold as a kit
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.075 in (27.3 mm)
Inside Diameter Of Outer Spring0.65 in (16.51 mm)
Lock MaterialHardened steel
Spring Rate (Lbs./In.)313
Part FitmentSemi Universal
Outside Diameter1.29 in (32.8 mm)
Retainer MaterialSteel
Vendor Part Number26918CS-KIT
Package Qty1
Package TypeEA
