Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26918TS-KIT
Beehive Valve Spring Kit Chevy LS1/LS2/LS6
$62195
Ships on 09/08/2026
Lowest Price GuaranteeGM Gen III/IV LS
- Beehive Valve Spring Kit
- Chevy LS1/LS2/LS6
- Tool Steel Retainers
- O.D. Base: 1.310

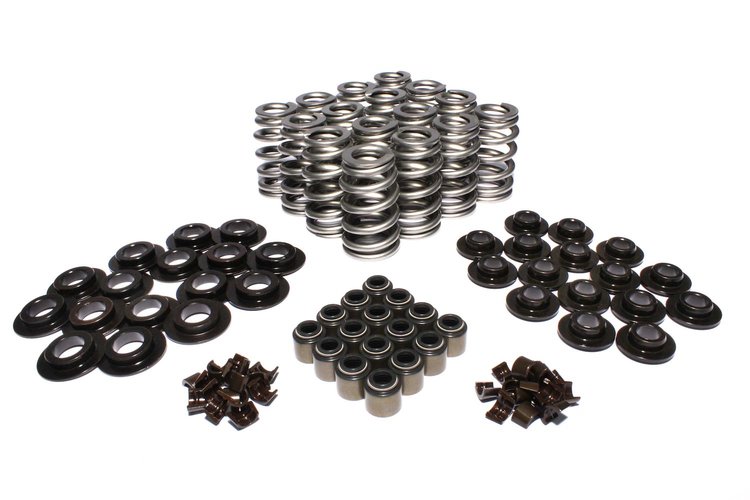

Kit Includes:249-26918-16 Beehive Valve Springs, 249-1772-16 Lightweight Tool Steel Retainers, 249-623-16 7° Steel Valve Locks, 249-511-16 Valve Seals, 249-4705-16 Spring Seats
Specs - OD: Top 1.075" Bottom 1.310"
- ID: Top .650" Bottom .885"
- Seat Pressure: 125 lbs @ 1.800'
- Open Pressure: 367 lbs @ 1.150'
- Coil Bind: 1.100"
- Spring Rate: 372 lbs/in
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Including properly matched quality dual valve springs, 7 degree locks, viton seals, hardened seats and lightweight tool steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .625" valve lift.
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.8
Package Width6.5
Package Length12.1
Weight4.34 PG
Part CategoryPerformance Parts
PositionN/A
Inside Diameter0.660/0.885
Open Height1.15 in (29.2 mm)
Open Pressure (Lbs.)367
Installed Pressure (Lbs.)125
Spring TypeSingle
Spring Rate (Lbs./In.)313
Outside Diameter1.29 in (32.8 mm)
Installed Height1.8 in (45.72 mm)
Camshaft TypeOEM
Vendor Part Number26918TS-KIT
Package Qty1
Package TypeEA
