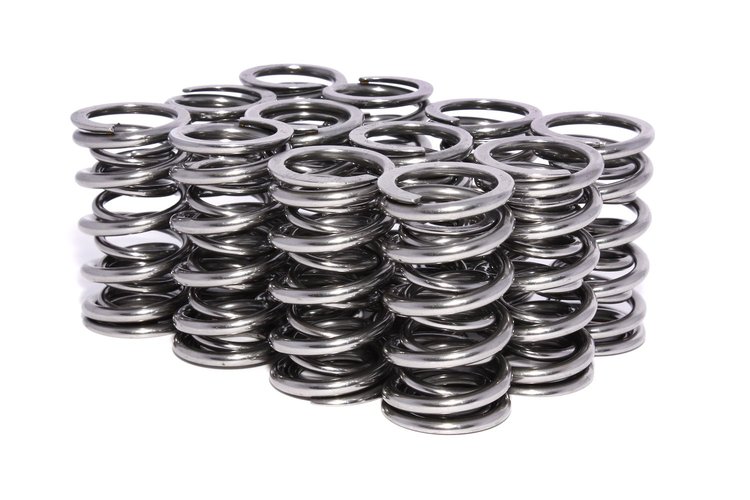

Dual Valve Springs Outer Spring O.D.: 1.320 in.

Name: Dual Valve Springs Outer Spring O.D.: 1.320 in.
Brand: COMP CAMS
SKU: 249-26925-12
Price: 220.95 USD
Availability: InStock

^$220⁹⁵

Ships on 09/09/2026

Lowest Price Guarantee

1.320 in. Outside Diameter

Outer Spring O.D.: 1.320 in.
Outer Spring I.D.: 0.958 in.
Inner Spring I.D.: 0.680 in.
Seat Load: 141lbs
Coil Bind: 1.070 in.
Spring Rate: 400lbs/in.
Without damper
Set of 12

COMP Cams Dual Valve Springs for street/strip applications are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring Kit

BrandCOMP CAMS

Package Height2.5

Package Width2.9

Package Length10.4

Weight2.67 PG

Part CategoryPerformance Parts

Coil Bind Height1.1 in (27.94 mm)

PositionN/A

Open Height1.15 in (29.2 mm)

Open Pressure (Lbs.)405

Installed Pressure (Lbs.)141

Installed Height1.81 in (45.974 mm)

Inside Diameter0.68 in (17.272 mm)

Spring TypeDouble

Spring Rate (Lbs./In.)400

Part FitmentSemi Universal

Outside Diameter1.32 in (33.5 mm)

Camshaft TypeMechanical

Vendor Part Number26925-12

Package Qty1

Package TypeEA
