Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26925-16

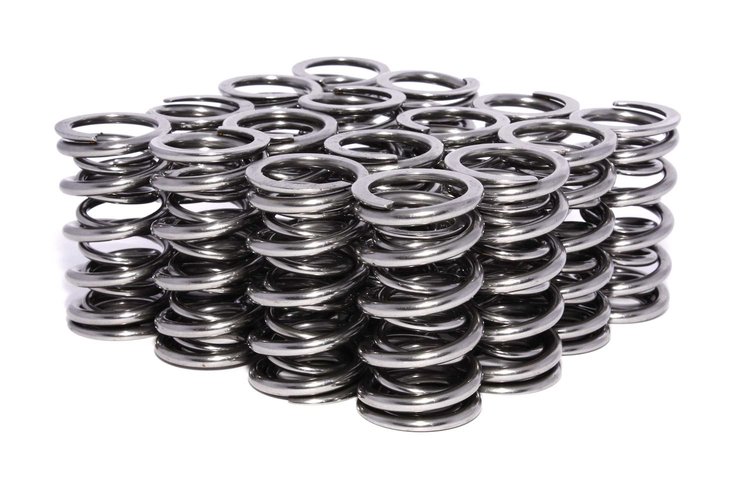

Dual Valve Springs Outer Spring O.D.: 1.320 in.
$28895
Ships on 09/08/2026
Lowest Price Guarantee1.320 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.320 in.
- Outer Spring I.D.: 0.958 in.
- Inner Spring I.D.: 0.680 in.
- Seat Load: 141lbs
- Coil Bind: 1.070 in.
- Spring Rate: 400lbs/in.
- Without damper
- Set of 16
Designed for use with street/strip hydraulic roller and some solid roller cams - .660' maximum lift
- Engineered specifically for LS1 applications
- Polished finish
Compatible Components
- Steel Retainers in LS Engines - 249-713-16
- Steel Retainers in non-LS Engines - 249-714-16
- Lightweight Tool Steel Retainers in LS Engines - 249-1717-16
- Spring Cup Seats - 249-4695-16
- Spring Shims - 249-4753-16
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.7
Package Width2.9
Package Length10.4
Weight3.51 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.1 in (27.94 mm)
Damper Spring IncludedNo
Spring Rate400 lbs./in.
PositionExhaust Or Intake
Open Height1.15 in (29.2 mm)
Open Pressure (Lbs.)405
Installed Pressure (Lbs.)141
QuantitySold as a set of 16
Installed Height1.81 in (45.974 mm)
Inside Diameter Of Inner Spring0.68 in (17.272 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.32 in (33.5 mm)
Inside Diameter Of Outer Spring0.958 in (24.333 mm)
Inside Diameter0.68 in (17.272 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)400
Part FitmentSemi Universal
Outside Diameter1.32 in (33.5 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number26925-16
Package Qty1
Package TypeEA
