Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26925TS-KIT
Dual Valve Spring & Light Tool Steel Retainer Kit Outer Spring O.D.: 1.320 in.
$65795
Ships on 09/09/2026
Lowest Price Guarantee1.320 in. Outside Diameter

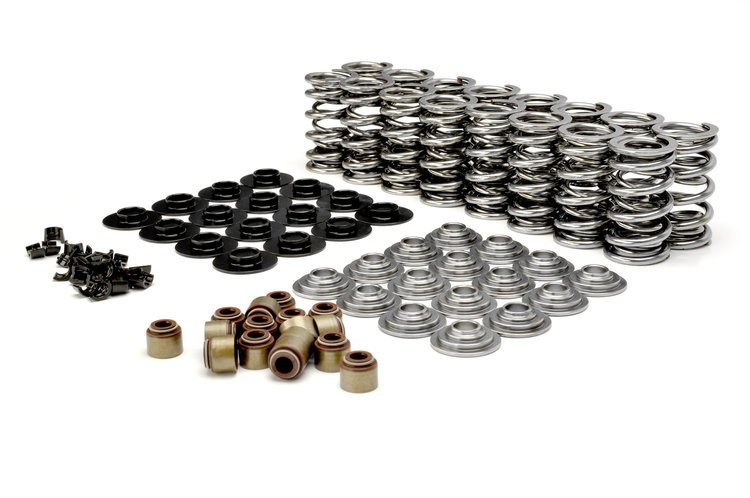

- Dual Valve Spring & Light Tool Steel Retainer Kit
- Outer Spring O.D.: 1.320 in.
- Outer Spring I.D.: 0.958 in.
- Inner Spring I.D.: 0.680 in.
- Seat Load: 141lbs
- Coil Bind: 1.070 in.
- Spring Rate: 400lbs/in.
- Without dampers
- Set of 16
- Contains Everything You Need
- Lightweight Tool Steel
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Including properly matched quality dual valve springs, 7 degree locks, viton seals, hardened seats and lightweight tool steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .650" valve lift.
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.8
Package Width6.5
Package Length12.0
Weight5.11 PG
Part CategoryPerformance Parts
CoatedNo
Installed Pressure (Lbs.)141
Locks IncludedYes
Installed Height1.81 in (45.974 mm)
Inside Diameter Of Inner Spring0.68 in (17.272 mm)
Retainers IncludedYes
Lock StyleStock
Inside Diameter0.68 in (17.272 mm)
Spring TypeDouble
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Coil Bind Height0.66 in (16.764 mm)
Damper Spring IncludedNo
Spring Rate400 lbs./in.
PositionN/A
Open Height1.15 in (29.2 mm)
Open Pressure (Lbs.)405
QuantitySold as a set of 16
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.32 in (33.5 mm)
Inside Diameter Of Outer Spring0.958 in (24.333 mm)
Lock MaterialSteel
Spring Rate (Lbs./In.)500
Outside Diameter1.32 in (33.5 mm)
Retainer MaterialTool steel
Vendor Part Number26925TS-KIT
Package Qty1
Package TypeEA
