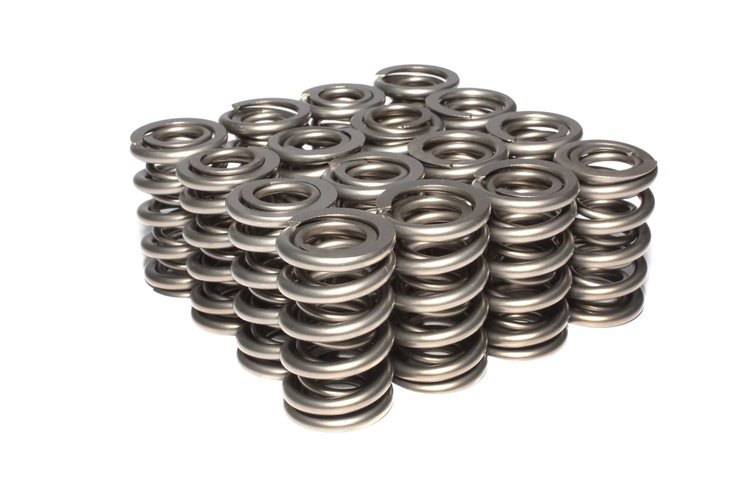

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26926-16
Dual Valve Springs Outer Spring O.D.: 1.320 in.
$32236$402.95You Save$80.59
Ships on Sep 15, 2026
Lowest Price Guarantee1.320 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.320 in.
- Outer Spring I.D.: 0.920 in.
- Inner Spring I.D.: 0.654 in.
- Seat Load: 129lbs
- Coil Bind: 1.100 in.
- Spring Rate: 505lbs/in.
- Without damper
- Set of 16
Designed for use with street/strip hydraulic roller, some solid roller cams and some solid flat tappet race cams - .675' maximum lift
- Engineered specifically for Comp Cams LSR Cams for LS engines
Specs
- O.D. Outer Spring: 1.320'
- I.D. Outer Spring: 0.920'
- I.D. Inner Spring: 0.654'
- Spring Rate: 505 lbs/in
- Seat Pressure: 129 lbs @ 1.835'
- Open Pressure: 470 lbs @ 1.160'
- Coil Bind: 1.100'
- Spring Damper: No
Compatible Components
- Lightweight Tool Steel Retainers in LS Engines - 249-1779-16
- Lightweight Tool Steel Retainers in non-LS Engines - 249-1777-16
- Titanium Steel Retainers in LS Engines - 249-779-16
- Spring Cup Seats - 249-4695-16
- Spring Shims - 249-4753-16
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.6
Weight3.92 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height0.675 in (17.145 mm)
Damper Spring IncludedNo
Spring Rate505 lbs./in.
PositionN/A
Open Height1.16 in (29.5 mm)
Open Pressure (Lbs.)70
Installed Pressure (Lbs.)129
QuantitySold as a set of 16
Installed Height1.835 in (46.609 mm)
Inside Diameter Of Inner Spring0.654 in (16.612 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.32 in (33.5 mm)
Inside Diameter0.654 in (16.612 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)505
Part FitmentSemi Universal
Outside Diameter1.32 in (33.5 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number26926-16
Package Qty1
Package TypeEA
