Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26926TI-KIT
Dual Valve Spring & Titanium Retainer Kit Outer Spring O.D.: 1.320 in.
$85395
Ships Tomorrow
Lowest Price Guarantee1.320 in. Outside Diameter
- Dual Valve Spring & Titanium Retainer Kit
- Outer Spring O.D.: 1.320 in.
- Outer Spring I.D.: 0.920 in.
- Inner Spring I.D.: 0.654 in.
- Seat Load: 129lbs
- Coil Bind: 1.100 in.
- Spring Rate: 505lbs/in.
- Without damper
- Set of 16

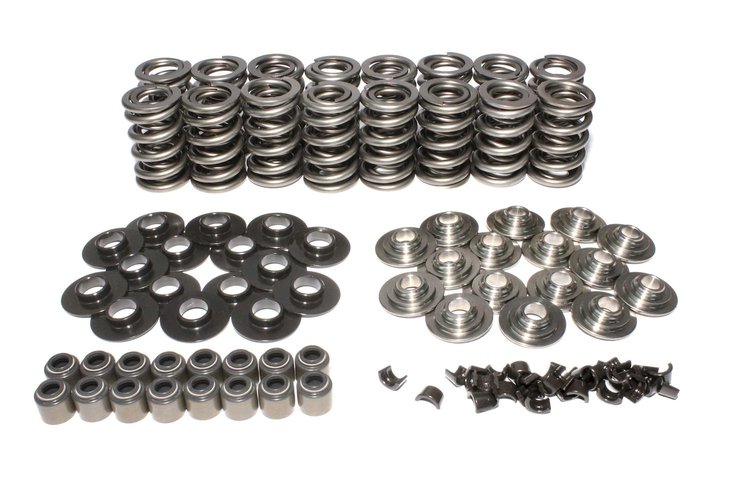

This Dual Valve Spring Kit for LS engines includes carefully matched Dual Valve Springs, titanium retainers, 7° locks, seals and spring seats. With a .675' maximum lift, these COMP Cams Dual Valve Springs for race applications are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.Kit Includes:
- 249-26926-16 Street/Strip Dual Valve Springs
- 249-779-16 Titanium Retainers
- 249-623-16 7° Steel Valve Locks
- 249-511-16 Valve Seals
- 249-4695-16 Spring Seats
Ideal for street/strip hydraulic roller, some solid roller and some solid flat tappet race applications.
Specs
- O.D. Outer Spring: 1.320'
- I.D. Outer Spring: 0.920'
- I.D. Inner Spring: 0.654'
- Spring Rate: 505 lbs/in
- Seat Pressure: 129 lbs @ 1.835'
- Open Pressure: 470 lbs @ 1.160'
- Coil Bind: 1.100'
- Spring Damper: No
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Including properly matched quality dual valve springs, 7 degree locks, viton seals, hardened seats and lightweight titanium retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .675" valve lift.
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.8
Package Width6.6
Package Length12.1
Weight5.15 PG
Part CategoryPerformance Parts
CoatedNo
Installed Pressure (Lbs.)129
Locks IncludedYes
Installed Height1.835 in (46.609 mm)
Inside Diameter Of Inner Spring0.654 in (16.612 mm)
Retainers IncludedYes
Lock Style7 degree
Inside Diameter0.654 in (16.612 mm)
Spring TypeDouble
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Coil Bind Height0.675 in (17.145 mm)
Damper Spring IncludedNo
Spring Rate505 lbs./in.
PositionN/A
Open Height1.16 in (29.5 mm)
Lock Groove Quantity1-groove
Open Pressure (Lbs.)70
QuantitySold as a kit
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.32 in (33.5 mm)
Lock MaterialHardened steel
Spring Rate (Lbs./In.)505
Outside Diameter1.32 in (33.5 mm)
Retainer MaterialTitanium
Vendor Part Number26926TI-KIT
Package Qty1
Package TypeEA
