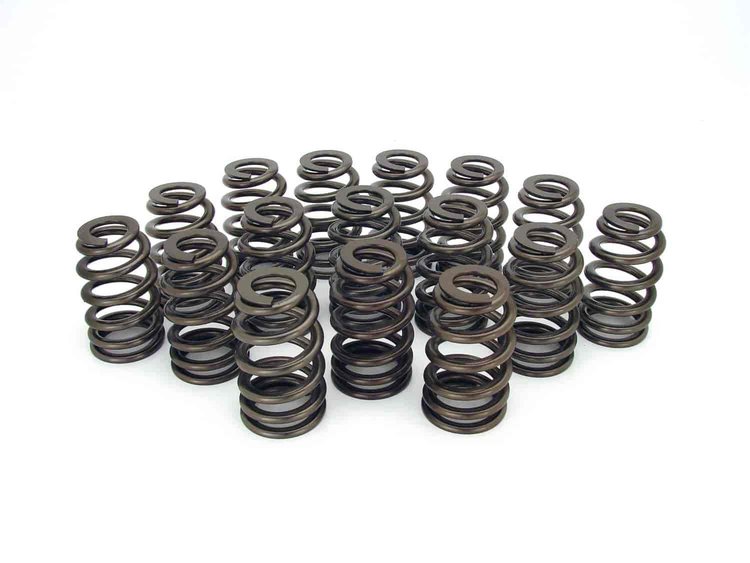

Elite Valve Spring Spring O.D: 1.500"

Name: Elite Valve Spring Spring O.D: 1.500"
Brand: COMP CAMS
SKU: 249-26955-16
Price: 853.99 USD
Availability: InStock

^$853⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

Elite Valve Springs

Spring O.D: 1.500"
Spring I.D: 0.719"
Installed Height: 2.175"
Installed Load: 480
Open Height: 1.175"
Open Load: 1300
Coil Bind: 1.130"
Max Lift: 1.000"
16/Pkg.
Exclusive Clean Wire Sourcing
Precision Micro-Finishing
Specially Formulated Spring Steel
1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

The COMP Cams Elite Drag Race Dual Valve Springs are smaller in diameter and feature higher frequencies. These new dual valve springs are coiled with a revolutionarily new process that enhances durability by engineering the outer spring precision to the interface with the inner spring. The Elite Drag Race Dual Valve Springs use a smaller, lighter retainer engineered with a newly developed and specially formulated spring steel. This exclusive design and use of lighter retainers substantially increases the longevity in extreme conditions, such as professional drag racing.

Part TypeValve Spring Kit

Product LineComp Cams Elite Drag Race Dual Valve Springs

BrandCOMP CAMS

Package Height3.0

Package Width3.75

Package Length13.5

Weight4.0 PG

Part CategoryPerformance Parts

Coil Bind Height1.13 in (28.702 mm)

PositionN/A

Inside Diameter0.719 in (18.263 mm)

Open Height1.175 in (29.8 mm)

Open Pressure (Lbs.)1225

Installed Pressure (Lbs.)480

Spring TypeDouble

Part FitmentSemi Universal

Outside Diameter1.5 in (38.1 mm)

Installed Height2.175 in (55.245 mm)

Camshaft TypeOEM

Vendor Part Number26955-16

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
