Vehicle Info Needed

COMP CAMSPART NUMBER: 249-26975-16

Single Outer Valve Springs Rate: 356 lbs

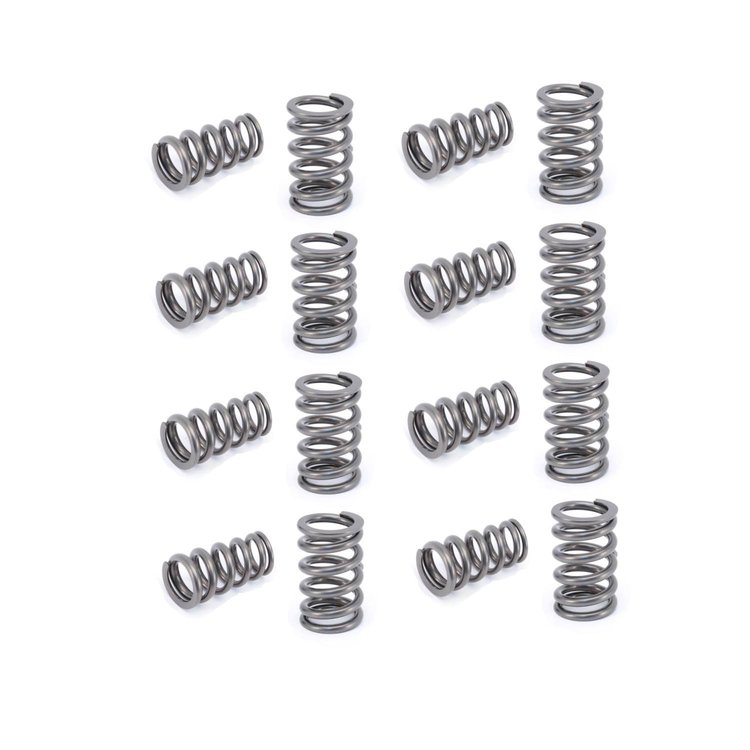

Name: Single Outer Valve Springs Rate: 356 lbs
Brand: COMP CAMS
SKU: 249-26975-16
Price: 400.95 USD
Availability: InStock

^$400⁹⁵

Ships on 09/08/2026

Lowest Price Guarantee

Outer

Rate: 356 lbs
.920'' ID, 1.320'' OD
Seat Load: 103 lbs at 1.780''
Open Load: 325 lbs at 1.160''
Coil Bind Height: 1.100''
No Damper
16/pkg

Compatible with Circle Track GM 604 Crate Engines
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring Kit

BrandCOMP CAMS

Package Height2.5

Package Width2.9

Package Length10.3

Weight2.78 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height1 in (25.4 mm)

Damper Spring IncludedNo

Spring Rate356 lbs./in.

PositionExhaust Or Intake

Open Height1.16 in (29.5 mm)

Open Pressure (Lbs.)325

Installed Pressure (Lbs.)104

QuantitySold as a set of 16

Installed Height1.78 in (45.212 mm)

Valve Spring StyleStandard

Outside Diameter Of Outer Spring1.32 in (33.5 mm)

Inside Diameter Of Outer Spring0.92 in (23.368 mm)

Inside Diameter0.9 in (22.86 mm)

Spring TypeSingle

Spring Rate (Lbs./In.)355

Part FitmentSemi Universal

Outside Diameter1.32 in (33.5 mm)

Number Of Springs Per ValveSingle

Camshaft TypeHydraulic

Vendor Part Number26975-16

Package Qty1

Package TypeEA
