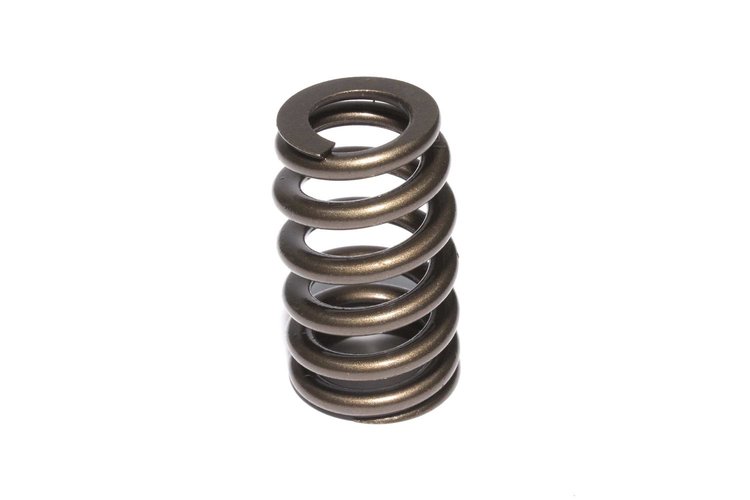

Chevy Small Block
- Beehive Valve Spring
- Small Block Chevy
- O.D. Base: 1.240
- 1/pkg
Designed for hydraulic or solid flat tappet cams cams as well as hydraulic rollers - .525" maximum lift, 1.240" O.D.
- Will work with most Small Block Chevy heads with no machining required.
Specs - OD: Top 1.065" Bottom 1.240"
- ID: Top .650" Bottom .825"
- Seat Pressure: 110 lbs @ 1.700'
- Open Pressure: 292 lbs @ 1.1175'
- Coil Bind: 1.115"
- Spring Rate: 347 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.0
Package Width1.0
Package Length2.0
Weight0.1 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.115 in (28.321 mm)
Damper Spring IncludedNo
Spring Rate347 lbs./in.
PositionN/A
Open Height1.175 in (29.8 mm)
Open Pressure (Lbs.)292
Installed Pressure (Lbs.)110
QuantitySold individually
Installed Height1.7 in (43.18 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.24 in (31.5 mm)
Inside Diameter Of Outer Spring0.825 in (20.955 mm)
Inside Diameter0.650/0.742
Spring Rate (Lbs./In.)347
Part FitmentSemi Universal
Outside Diameter1.065 in (27.1 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number26981-1
Package Qty1
Package TypeEA
