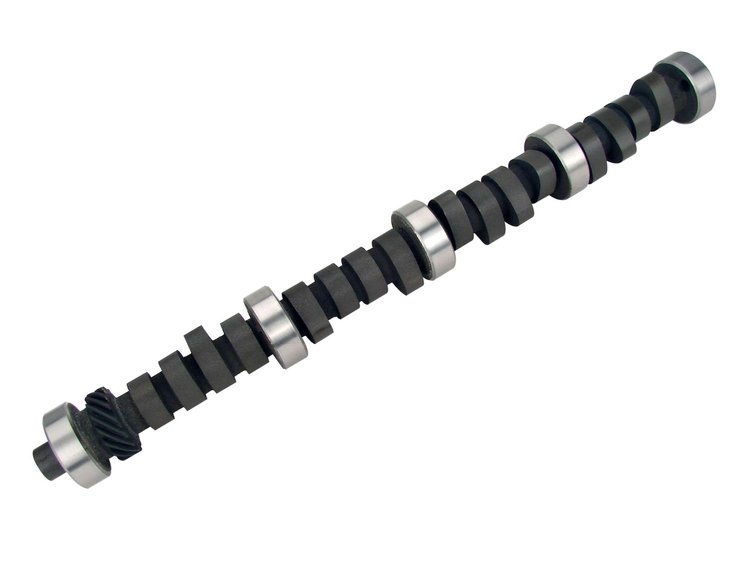

Magnum 280H Hydraulic Flat Tappet Camshaft
Lift: .512''/.512"
Duration: 280°/280°
RPM Range: 2000-6000


*Note: Firing Order 1-5-4-2-6-3-7-8

Broad power. 2500 stall converter, low gears, 9.5:1 compression and headers. Rough idle.

Operating Range:	2000-6000 RPM
Duration Advertised:	280° Intake / 280° Exhaust
Duration @ .050' Lift:	230° Intake / 230° Exhaust
Valve Lift w/1.6 Rockers:	.512' Intake / .512' Exhaust
Lobe Separation Angle:	110°

Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


Broad power. 2500+ stall, low gears, 9.5:1 compression and headers. Rough idle. Off shore type boat. Strong performance, rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
