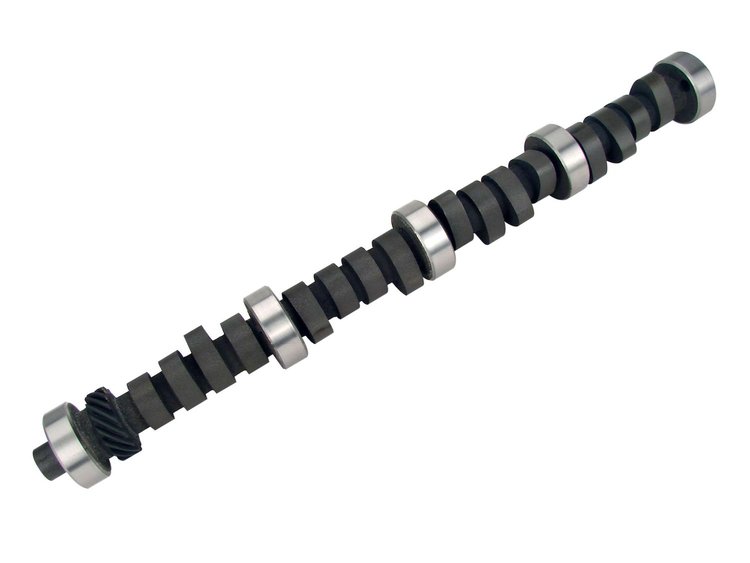

Magnum 270H Hydraulic Flat Tappet Camshaft
Lift: .500''/.500"
Duration: 270°/270°
RPM Range: 1800-5800


*Note: Firing Order 1-5-4-2-6-3-7-8

Performance use. Best with mild converter, headers, 9:1 compression, and lower gears. Rough idle.

Operating Range:	1800-5800 RPM
Duration Advertised:	270° Intake / 270° Exhaust
Duration @ .050' Lift:	224° Intake / 224° Exhaust
Valve Lift w/1.6 Rockers:	.500' Intake / .500' Exhaust
Lobe Separation Angle:	110°

Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


Performance use. Best with mild converter, headers, 9:1 compression and lower gears. Rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
