Vehicle Info NeededCOMP CAMSPART NUMBER: 249-31-639-5

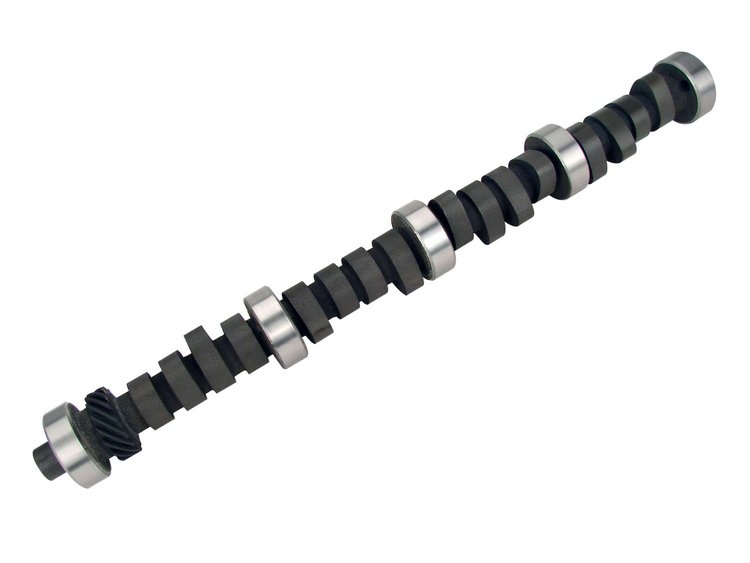

Drag Race Mechanical Flat Tappet Camshaft Ford 289-302 1963-95 Lift: .541"/.522"
$32495
Ships on 09/16/2026
Lowest Price GuaranteeFord 289-302 1963-95
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .541"/.522"
- Duration: 280°/284°
- Lobe Separation Angle: 106°
- RPM Range: 3000-7000
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Good torque for small engines, 3500+ stall, 10:1 compression.
Ford 289-302 1963-95
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.4
Weight9.55 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleMechanical flat tappet
Grind NumberFS 280B-6
Exh. Duration Advertised (Deg)284-1
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.541
Int. Duration @ .050 In. (Deg)242
Basic Operating Rpm Range3,000-7,000
Intake Valve Lash0.026 in (0.66 mm)
Intake Valve Lift0.541 in (13.741 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280-1
Lobe Separation (Deg)106
Rpm Range3000-7000
Advertised Duration280 int./284 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.522
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.541 int./0.522 exh.
QuantitySold individually
Exhaust Valve Lash0.028 in (0.711 mm)
Exhaust Valve Lift0.522 in (13.259 mm)
Advertised Intake Duration280
Intake Duration At 050 Inch Lift242
Exhaust Duration At 050 Inch Lift246
Advertised Exhaust Duration284
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift242 int./246 exh.
Valve Springs RequiredYes
Vendor Part Number31-639-5
Package Qty1
Package TypeEA
