Vehicle Info NeededCOMP CAMSPART NUMBER: 249-950-16

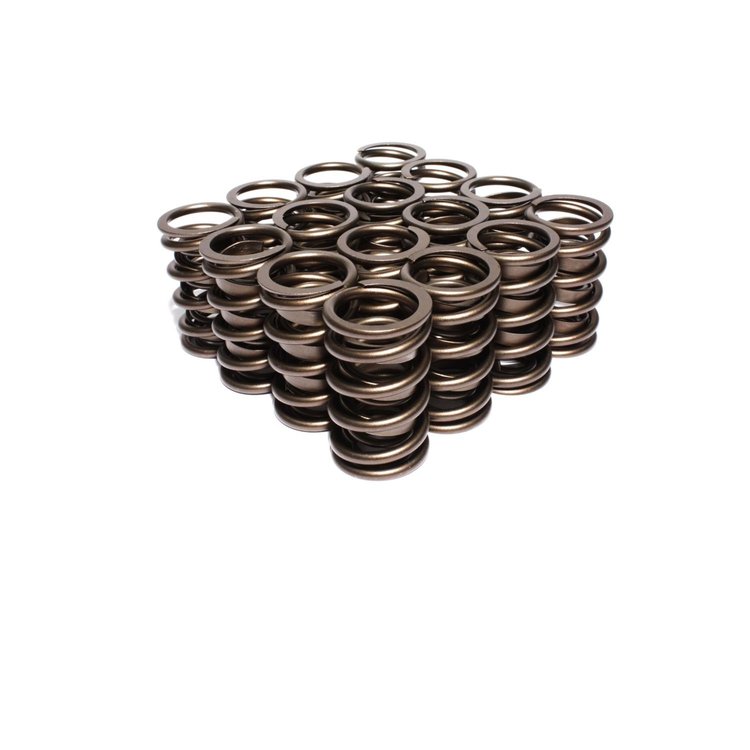

Dual Valve Springs Outer Spring O.D.: 1.475 in.
$16999
Ships on Sep 04, 2026
Lowest Price Guarantee1.475 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.475 in.
- Outer Spring I.D.: 1.080 in.
- Inner Spring I.D.: 0.712 in.
- Seat Load: 116lbs
- Coil Bind: 1.200 in.
- Spring Rate: 332lbs/in.
- With damper
- Set of 16
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.5
Weight5.57 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.2 in (30.48 mm)
Damper Spring IncludedYes
Spring Rate333 lbs./in.
PositionN/A
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)332
Installed Pressure (Lbs.)132
QuantitySold as a set of 16
Installed Height1.9 in (48.26 mm)
Inside Diameter Of Inner Spring0.724 in (18.39 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.464 in (37.2 mm)
Inside Diameter Of Outer Spring1.08 in (27.432 mm)
Inside Diameter0.724 in (18.39 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)333
Outside Diameter1.464 in (37.2 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number950-16
Package Qty1
Package TypeEA
